430001-505

Active

Laird Thermal Systems, Inc.

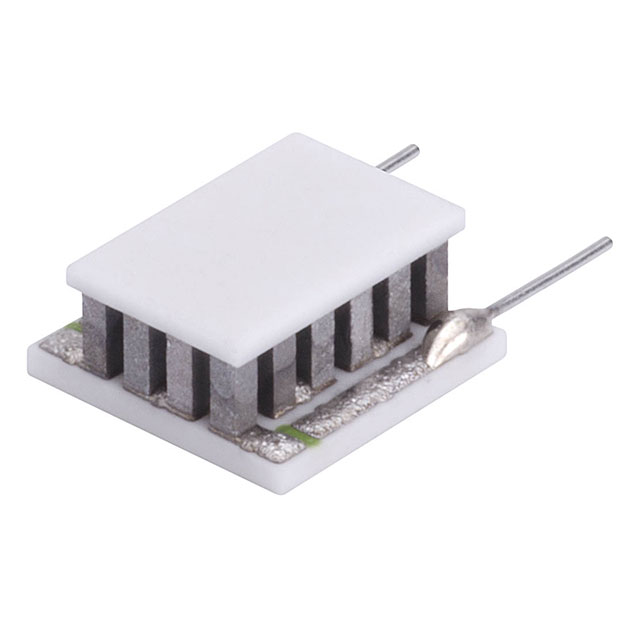

PELTIER OT12,12,F0,0406,GG,W2.25

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER OT12,12,F0,0406,GG,W2.25

Technical Specifications

Parameters and characteristics for this part

Part	Qmax @ Th	Height [z]	Operating Temperature	Number of Stages	Current - Max [Max]	Voltage - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Delta Tmax @ Th	Features	Resistance
Laird Thermal Systems, Inc. 430001-501	1 W	2.69 mm	80 °C	1	1.2 A	1.4 V	6.2 mm	6.2 mm	67 °C	Lead Wires Non-Sealed	1.04 Ohms
Laird Thermal Systems, Inc. 430001-505	1 W	3.02 mm	80 °C	1	1.2 A	1.4 V	6.2 mm	6.2 mm	67 °C	Lead Wires Non-Sealed	1.04 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Peltier Module 1.0W @ 25°C 1.2 A 80°C

Technical documentation and resources
