9081-0-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.

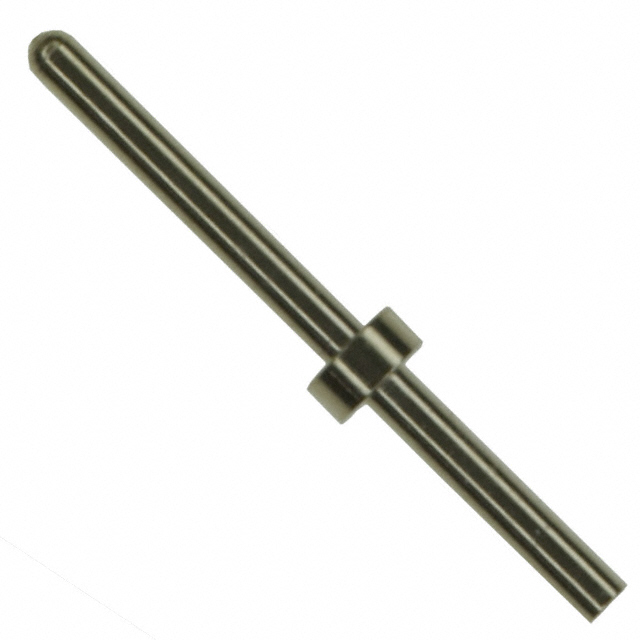

CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Search across all available documentation for this part.
9081-0-00-15-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC 0.020DIA GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9081-0-00-15-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.045 in |
| Flange Diameter [diameter] | 1.14 mm |
| Insulation | Non-Insulated |
| Length - Above Flange | 4.32 mm |
| Length - Above Flange | 0.17 in |
| Length - Below Flange [x] | 0.125 in |
| Length - Below Flange [x] | 3.18 mm |
| Length - Overall [x] | 8 mm |
| Length - Overall [x] | 0.315 in |
| Mounting Hole Diameter [diameter] | 0.61 mm |
| Mounting Hole Diameter [diameter] | 0.024 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 0.51 mm |
| Pin Size - Above Flange [diameter] | 0.02 in |
| Pin Size - Below Flange [diameter] | 0.51 mm |
| Pin Size - Below Flange [diameter] | 0.02 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.19 | |
| 10 | $ 0.16 | |||
| 25 | $ 0.14 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.11 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.08 | |||
| 2500 | $ 0.08 | |||
Description
General part information
9081-0 Series
PC Pin Terminal Connector Through Hole Gold 0.020" (0.51mm) Dia
