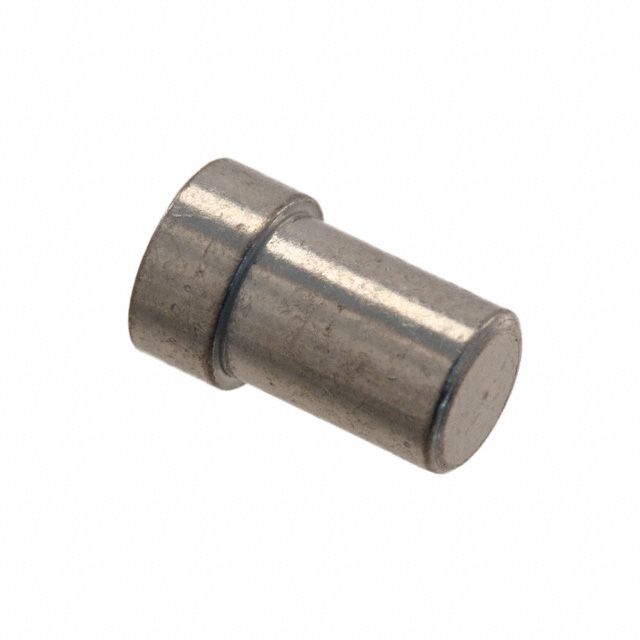

8837-0-15-01-14-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .065-.082 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8837-0-15-01-14-27-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT .065-.082 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8837-0-15-01-14-27-10-0 |
|---|---|
| Accepts Pin Diameter [Max] [diameter] | 0.082 in |
| Accepts Pin Diameter [Max] [diameter] | 2.08 mm |
| Accepts Pin Diameter [Min] [diameter] | 0.065 in |
| Accepts Pin Diameter [Min] [diameter] | 1.65 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.187 in |
| Flange Diameter [diameter] | 4.75 mm |
| Length - Overall [x] | 7.77 mm |
| Length - Overall [x] | 0.306 in |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 2.72 mm |
| Pin Hole Diameter [diameter] | 0.107 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.79 | |
| 10 | $ 0.69 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.57 | |||
| 250 | $ 0.52 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.41 | |||
| 3000 | $ 0.37 | |||
Description
General part information
8837-0 Series
Pin Receptacle Connector 0.065" ~ 0.082" (1.65mm ~ 2.08mm) No Tail Solder
