M8,AL

Active

Serpac

BOX ABS ALMOND 6.97"L X 2.4"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 6.97"L X 2.4"W

Technical Specifications

Parameters and characteristics for this part

Specification	M8,AL

Area (L x W)	16.7 in²
Area (L x W)	108 cm²
Color	Almond
Container Type	Box
Features	Battery Compartment, 9V and AA
Height [z]	0.85 in
Height [z]	21.59 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	6.97 in
Size / Dimension [x]	177.04 mm
Size / Dimension [y]	60.96 mm
Size / Dimension [y]	2.4 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	77.11 g
Weight	0.17 lb

Part	Height [z]	Height [z]	Weight	Weight	Color	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material Flammability Rating	Material	Features	Ratings	Container Type	Area (L x W)	Area (L x W)
Serpac M8,GY	0.85 in	21.59 mm	77.11 g	0.17 lb	Gray	2.54 mm	0.1 in	6.97 in	60.96 mm	177.04 mm	2.4 "	UL94 HB	Plastic ABS	9V and AA Battery Compartment	IP40	Box	16.7 in²	108 cm²
Serpac M8,BK	0.85 in	21.59 mm	77.11 g	0.17 lb	Black	2.54 mm	0.1 in	6.97 in	60.96 mm	177.04 mm	2.4 "	UL94 HB	Plastic ABS	9V and AA Battery Compartment	IP40	Box	16.7 in²	108 cm²
Serpac M8,AL	0.85 in	21.59 mm	77.11 g	0.17 lb	Almond	2.54 mm	0.1 in	6.97 in	60.96 mm	177.04 mm	2.4 "	UL94 HB	Plastic ABS	9V and AA Battery Compartment	IP40	Box	16.7 in²	108 cm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.53

General part information

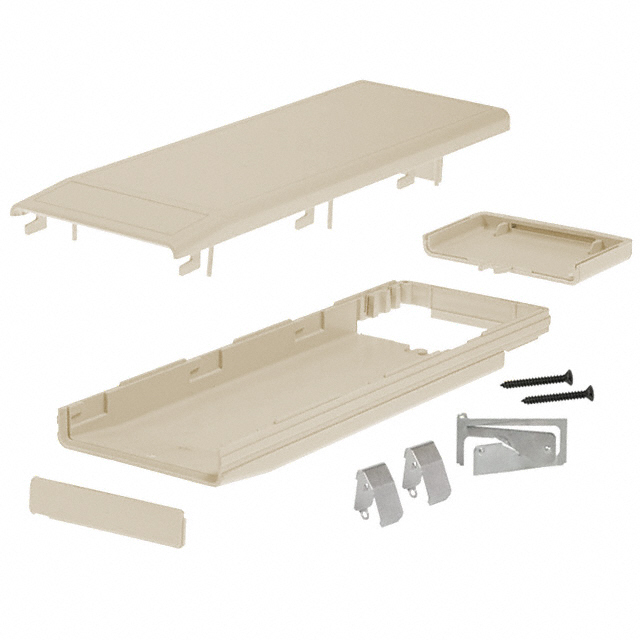

Box Plastic, ABS Almond Hand Held, Split Sides and End Panel(s) 6.970" L x 2.400" W (177.04mm x 60.96mm) X 0.850" (21.59mm)
