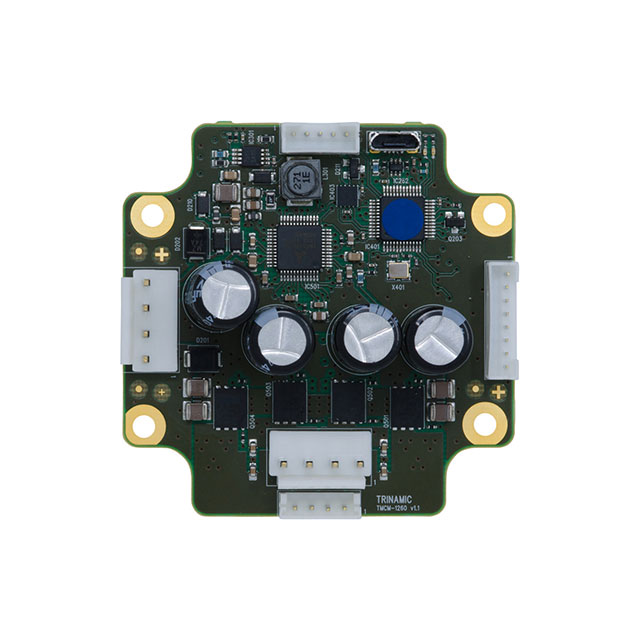

TMCM-1260-TMCL
ActiveAnalog Devices Inc./Maxim Integrated
STEPPER CONTROLLER/DRIVER 6A 12-
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMCM-1260-TMCL |
|---|---|
| Control / Drive Type | Bipolar, Stepper |
| Current - Output | 6 A |
| Interface | CAN, USB, RS-485 |
| Motor Type | Stepper |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -30 ░C |
| Type | Board |
| Voltage - Supply [Max] | 54 VDC |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 265.07 | |
| 10 | $ 229.25 | |||
Description
General part information
TMCM-1260 Series
Stepper, Bipolar 12 ~ 54VDC Supply 6A Load
