TTB6C135N16LOFHOSA1

Obsolete

Infineon Technologies

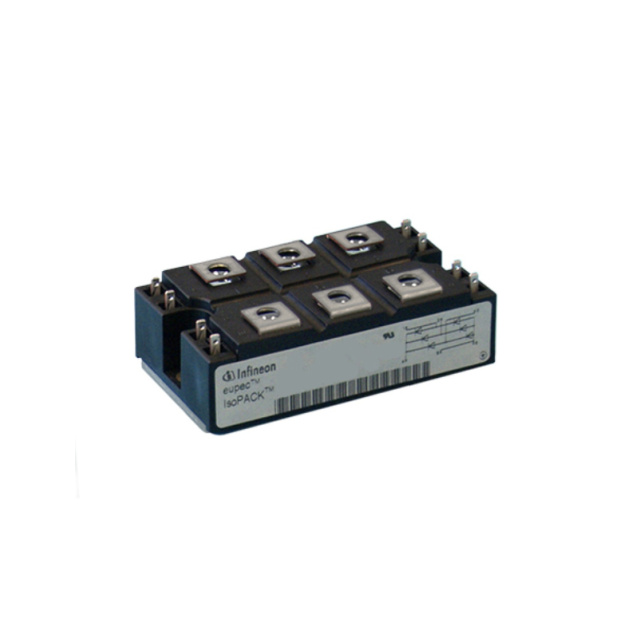

SCR MODULE 1.6KV 100A MODULE

Search across all available documentation for this part.

Obsolete

Infineon Technologies

SCR MODULE 1.6KV 100A MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	TTB6C135N16LOFHOSA1

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	1000 A
Current - On State (It (AV)) (Max) [Max]	173 A
Current - On State (It (RMS)) (Max) [Max]	100 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	6 SCRs
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV

Part	Current - On State (It (AV)) (Max) [Max]	Mounting Type	Voltage - Off State	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max)	Current - Hold (Ih) (Max) [Max]	Number of SCRs, Diodes
Infineon Technologies TTB6C135N16LOFHOSA1	173 A	Chassis Mount	1.6 kV	Module	125 °C	-40 °C	150 mA	100 A	1000 A	2.5 V	200 mA	6 SCRs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.6 kV 100 A Bridge, 3-Phase - All SCRs Chassis Mount Module
