R191365000

Active

Radiall USA, Inc.

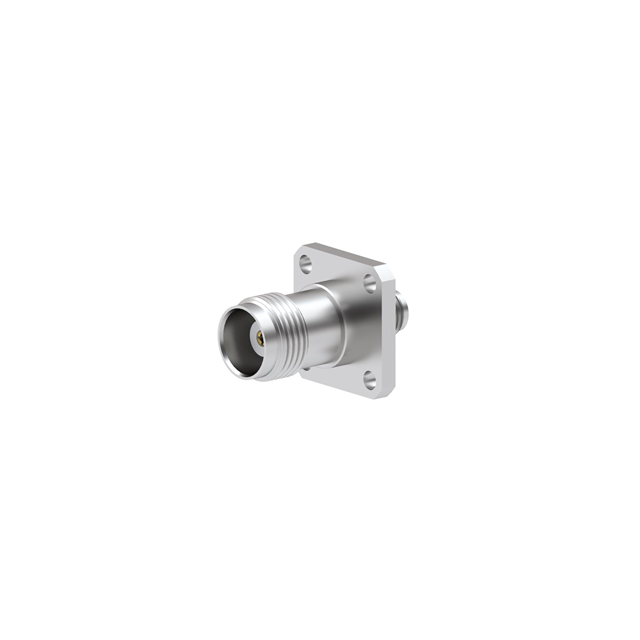

SMA FEMALE - TNC FEMALE SQUARE F

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA FEMALE - TNC FEMALE SQUARE F

Technical Specifications

Parameters and characteristics for this part

Specification	R191365000

Adapter Series	SMA to TNC
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	Female Socket, SMA Jack
Convert To (Adapter End)	Female Socket, TNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Center Gender	Dielectric Material	Mounting Feature	Body Material	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Convert From (Adapter End)	Style	Convert To (Adapter End)	Impedance	Adapter Series	Center Contact Material	Adapter Type	Body Finish	Frequency - Max [Max]
Radiall USA, Inc. R191365000	Female to Female	Polytetrafluoroethylene (PTFE)	Flange	Beryllium Copper	Between Series	125 °C	-65 ░C	Female Socket SMA Jack	Straight	Female Socket TNC Jack	50 Ohms	SMA to TNC	Beryllium Copper	Jack to Jack	Nickel	11 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMA Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
