6015-1002-030

Active

TE Connectivity Measurement Specialties

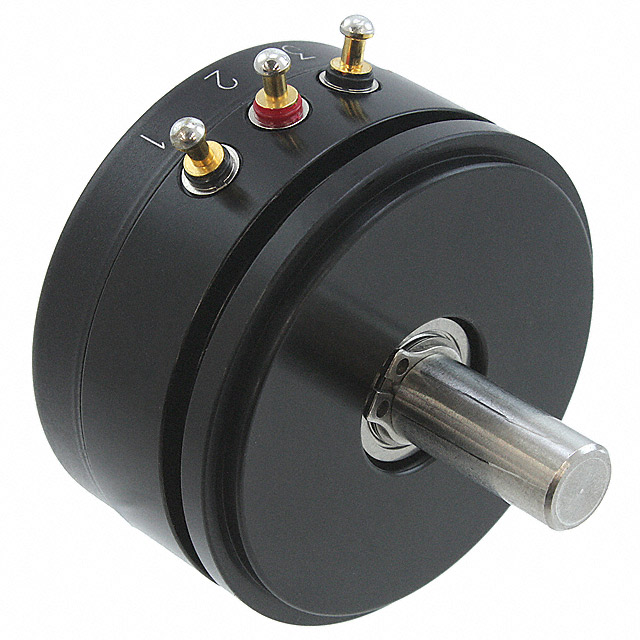

SENSOR ROTARY 340DEG SLDR TURRET

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR ROTARY 340DEG SLDR TURRET

Technical Specifications

Parameters and characteristics for this part

Specification	6015-1002-030

Actuator Type	Round Shaft
For Measuring	Rotary Position
Linearity	0.5 %
Mounting Type	Custom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Output	Resistive
Output Signal	Clockwise Increase
Package / Case	Module
Resistance	5 kOhms
Resistance Tolerance	10%
Rotation Angle - Electrical, Mechanical [Max]	340 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Resistive
Termination Style	Solder Turret

Part	Operating Temperature [Max]	Operating Temperature [Min]	For Measuring	Output Signal	Mounting Type	Actuator Type	Output	Package / Case	Termination Style	Resistance Tolerance	Technology	Linearity	Resistance	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]
TE Connectivity Measurement Specialties 6015-1003-030	125 °C	-65 ░C	Rotary Position	Clockwise Increase	Custom	Round Shaft	Resistive	Module	Solder Turret	10%	Resistive	0.5 %	10000 Ohms	0 °	340 °
TE Connectivity Measurement Specialties 6015-1002-030	125 °C	-65 ░C	Rotary Position	Clockwise Increase	Custom	Round Shaft	Resistive	Module	Solder Turret	10%	Resistive	0.5 %	5 kOhms	0 °	340 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	20	$ 338.46

General part information

Resistive Sensor Rotary Position Round Shaft Solder Turret
