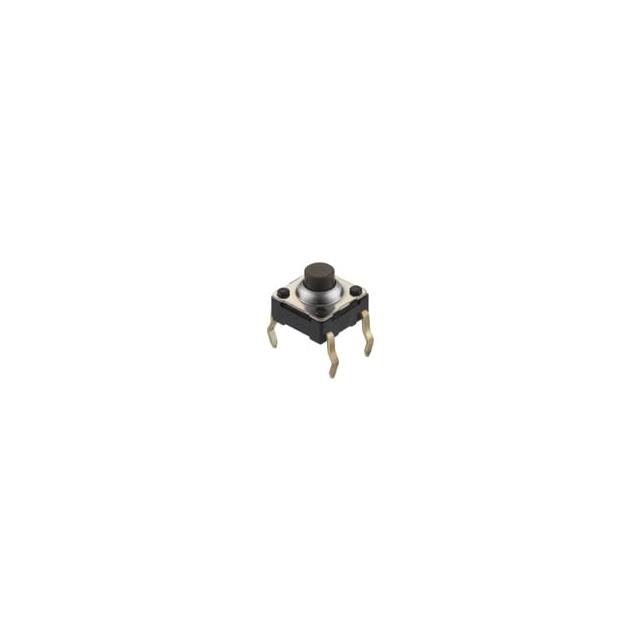

SKHWAPA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKHWAPA010

Actuator Height off PCB, Vertical	5 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Mounting Type	Circuit	Actuator Type	Actuator Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Termination Style	Outline [y]	Outline [x]	Switch Function	Contact Rating @ Voltage	Switch Travel [custom]	Actuator Height off PCB, Vertical [z]	Mechanical Life	Actuator Height off PCB, Vertical
Alps Alpine SKHWALA010	Through Hole	SPST-NO	Standard	Top Actuated	90 °C	-40 °C	Non-Illuminated	PC Pin	6 mm	6 mm	Off-Mom	0.05 A 12 VDC	0.3 mm	4.3 mm	1000000 Cycles
Alps Alpine SKHWAPA010	Through Hole	SPST-NO	Standard	Top Actuated	90 °C	-40 °C	Non-Illuminated	PC Pin	6 mm	6 mm	Off-Mom	0.05 A 12 VDC	0.3 mm		1000000 Cycles	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
