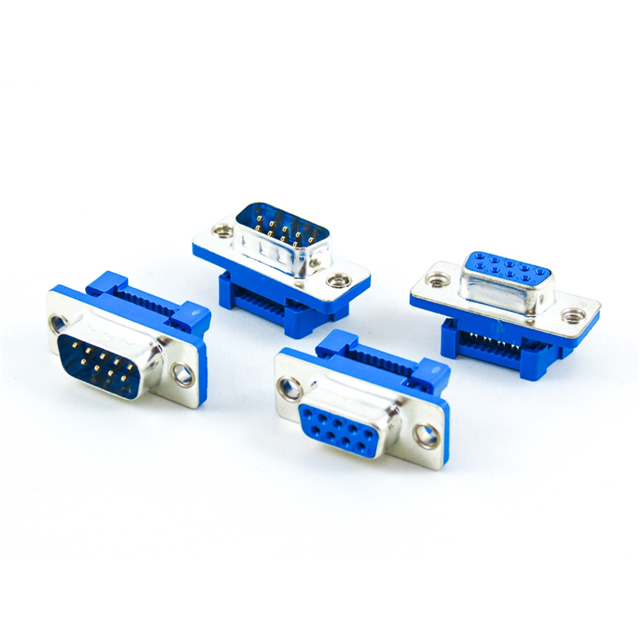

7901-A09FMNBC00A

Active

Oupiin

CONN D-SUB RCPT 9POS IDC

Search across all available documentation for this part.

Active

Oupiin

CONN D-SUB RCPT 9POS IDC

Technical Specifications

Parameters and characteristics for this part

Specification	7901-A09FMNBC00A

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Feed Through, Strain Relief
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	IDC, Ribbon Cable

Part	Connector Style	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Finish	Shell Material, Finish	Termination	Contact Material	Contact Finish Thickness	Features	Contact Type	Color	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Mounting Type	Number of Rows	Dielectric Material	Number of Positions	Shell Size, Connector Layout
Oupiin 7901-09MMOBG00A	D-Sub	105 ░C	-55 °C	Male Pins Plug	Gold	Metal	IDC Ribbon Cable	Copper Alloy	Flash	Feed Through Grounding Indents Strain Relief	Signal	Black	UL94 V-0	DE E	1	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	2	Polyester Thermoplastic Glass Filled	9
Oupiin 7901-A09MMNBC00A	D-Sub	85 °C	-25 °C	Male Pins Plug	Gold	Nickel Plated Steel	IDC Ribbon Cable	Brass	Flash	Feed Through Grounding Indents Strain Relief	Signal	Black	UL94 V-0	DE E	1	Housing/Shell (4-40)	Free Hanging (In-Line)	2	Polybutylene Terephthalate (PBT)	9
Oupiin 7901-A15MMNBC00A	D-Sub	85 °C	-25 °C	Male Pins Plug	Gold	Nickel Plated Steel	IDC Ribbon Cable	Brass	Flash	Feed Through Grounding Indents Strain Relief	Signal	Black	UL94 V-0			Housing/Shell (4-40)	Free Hanging (In-Line)	2	Polybutylene Terephthalate (PBT)	15	2
Oupiin 7901-A09FMNBC00A	D-Sub	85 °C	-25 °C	Receptacle Female Sockets	Gold	Nickel Plated Steel	IDC Ribbon Cable	Brass	Flash	Feed Through Strain Relief	Signal	Black	UL94 V-0	DE E	1	Housing/Shell (4-40)	Free Hanging (In-Line)	2	Polybutylene Terephthalate (PBT)	9

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.60

General part information

9 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

No documents available
