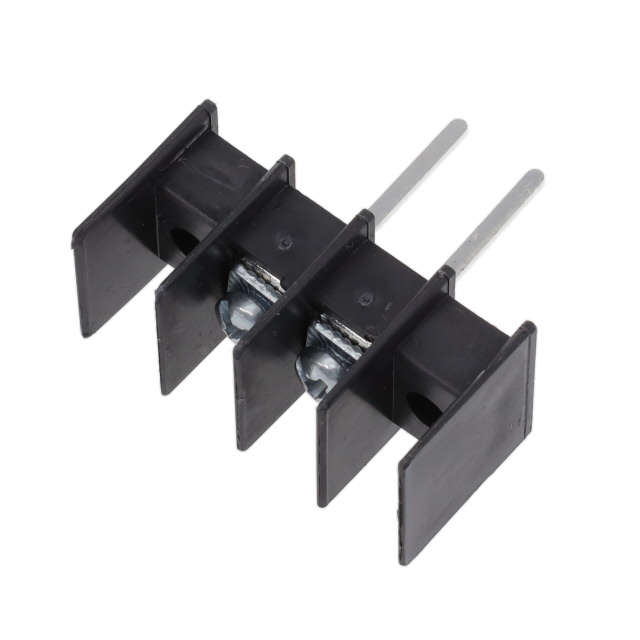

325021-02-0

Active

Curtis Industries

CONN BARRIER STRIP 2CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

325021-02-0

Active

Curtis Industries

CONN BARRIER STRIP 2CIRC 0.325"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325021-02-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Wire Wrap
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	2
Number of Rows	1
Number of Wire Entries	2
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325021 Series

Part	Number of Circuits	Terminal Block Type	Current Rating (Amps)	Features	Bottom Termination	Pitch [x]	Pitch [x]	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Material - Insulation	Number of Wire Entries	Operating Temperature	Voltage Rating	Mounting Type	Number of Rows	Barrier Type	Top Termination	Number of Wire Entries [custom]
Curtis Industries 325021-07-0	7	Barrier Block	15 A	Flange	Wire Wrap	8.26 mm	0.325 in	UL94 V-0	14 AWG	22 AWG	Polypropylene (PP)	7	105 C	300 VDC	Chassis Panel Through Hole	1	2 Wall (Dual)	Screws
Curtis Industries 325021-23-0	23	Barrier Block	15 A	Flange	Wire Wrap	8.26 mm	0.325 in	UL94 V-0	14 AWG	22 AWG	Polypropylene (PP)		105 C	300 VDC	Chassis Panel Through Hole	1	2 Wall (Dual)	Screws	23
Curtis Industries 325021-20-0	20	Barrier Block	15 A	Flange	Wire Wrap	8.26 mm	0.325 in	UL94 V-0	14 AWG	22 AWG	Polypropylene (PP)	20	105 C	300 VDC	Chassis Panel Through Hole	1	2 Wall (Dual)	Screws
Curtis Industries 325021-21-0	21	Barrier Block	15 A	Flange	Wire Wrap	8.26 mm	0.325 in	UL94 V-0	14 AWG	22 AWG	Polypropylene (PP)	21	105 C	300 VDC	Chassis Panel Through Hole	1	2 Wall (Dual)	Screws
Curtis Industries 325021-19-0	19	Barrier Block	15 A	Flange	Wire Wrap	8.26 mm	0.325 in	UL94 V-0	14 AWG	22 AWG	Polypropylene (PP)	19	105 C	300 VDC	Chassis Panel Through Hole	1	2 Wall (Dual)	Screws
Curtis Industries 325021-03-0	3	Barrier Block	15 A	Flange	Wire Wrap	8.26 mm	0.325 in	UL94 V-0	14 AWG	22 AWG	Polypropylene (PP)	3	105 C	300 VDC	Chassis Panel Through Hole	1	2 Wall (Dual)	Screws
Curtis Industries 325021-13-0	13	Barrier Block	15 A	Flange	Wire Wrap	8.26 mm	0.325 in	UL94 V-0	14 AWG	22 AWG	Polypropylene (PP)	13	105 C	300 VDC	Chassis Panel Through Hole	1	2 Wall (Dual)	Screws
Curtis Industries 325021-02-0	2	Barrier Block	15 A	Flange	Wire Wrap	8.26 mm	0.325 in	UL94 V-0	14 AWG	22 AWG	Polypropylene (PP)	2	105 C	300 VDC	Chassis Panel Through Hole	1	2 Wall (Dual)	Screws

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.72
		10	$ 2.06
		30	$ 1.91
		50	$ 1.72
		100	$ 1.68
		250	$ 1.47
		500	$ 1.34
		1000	$ 1.22
		5000	$ 1.07

Description

General part information

325021 Series

2 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
