V15H22-CZ100A02-K
ActiveHoneywell Sensing and Productivity Solutions

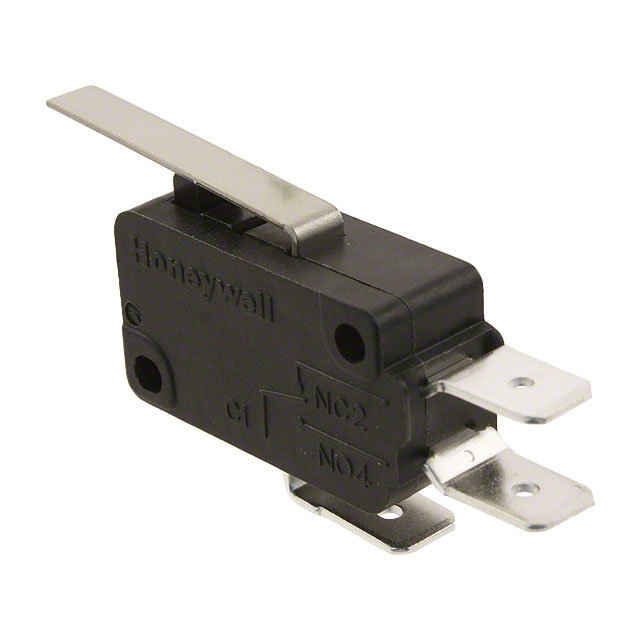

SWITCH SNAP ACTION SPDT 22A 250V
Deep-Dive with AI
Search across all available documentation for this part.
V15H22-CZ100A02-K
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 22A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V15H22-CZ100A02-K |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 22 A |
| Differential Travel | 0.047 in |
| Differential Travel | 1.2 mm |
| Electrical Life | 10000 Cycles |
| Mechanical Life | 5000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 60 gf |
| Operating Position | 15.3 mm |
| Operating Position | 0.602 " |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -25 °C |
| Overtravel | 0.051 in |
| Overtravel | 1.3 mm |
| Pretravel | 3.2 mm |
| Pretravel | 0.125 in |
| Release Force | 10 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
