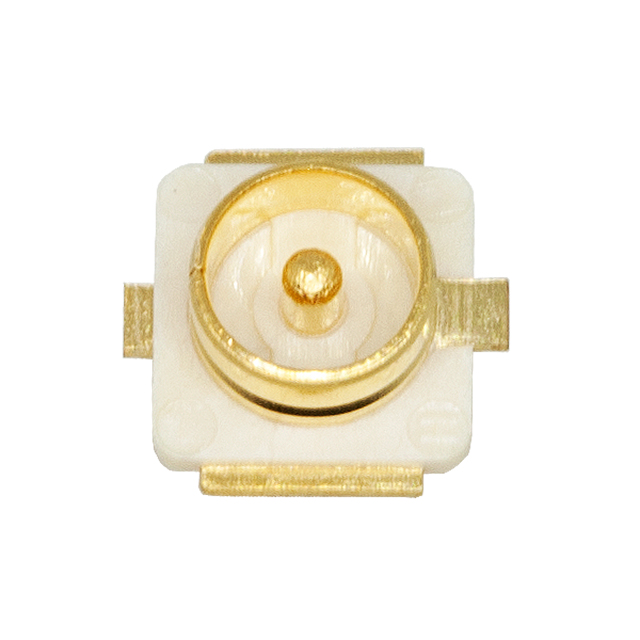

CONUFL001-SMD-T
ActiveTE Connectivity Linx
CONN UMC JACK STR SMD
Deep-Dive with AI
Search across all available documentation for this part.
CONUFL001-SMD-T
ActiveTE Connectivity Linx
CONN UMC JACK STR SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CONUFL001-SMD-T |
|---|---|
| Body Finish | Gold |
| Body Material | Copper Alloy |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | U.FL (UMCC) |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | White |
| Impedance | 50 Ohms |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| Digi-Reel | 1 | $ 0.44 | ||
| Tape & Reel (TR) | 2500 | $ 0.50 | ||
| 5000 | $ 0.44 | |||
Description
General part information
CONUFL001 Series
U.FL (UMCC) Connector Jack, Male Pin 50 Ohms Surface Mount Solder
