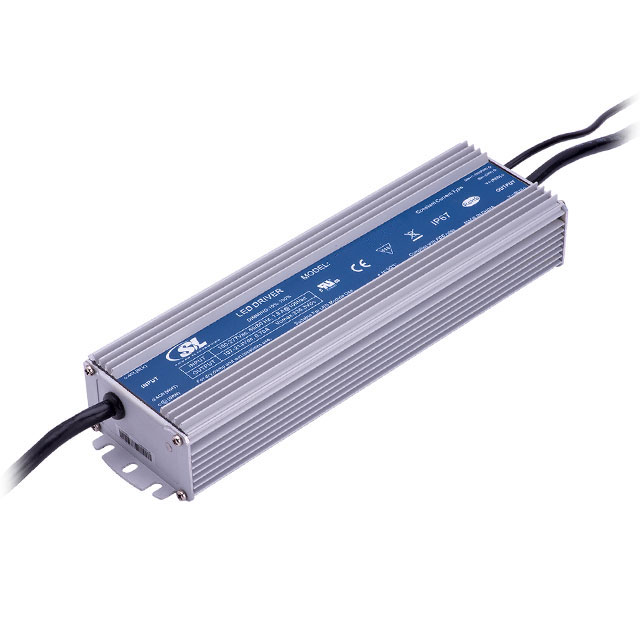

LE150S140CD
ActiveSL POWER / Advanced Energy
LED DVR CC AC/DC 53-107V 1.47A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LE150S140CD
ActiveSL POWER / Advanced Energy
LED DVR CC AC/DC 53-107V 1.47A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LE150S140CD |
|---|---|
| Approval Agency | UL, CE, CSA, EN |
| Dimming | Analog |
| Efficiency | 93 % |
| Features | OVP, OCP, OTP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -35 °C |
| Power (Watts) | 150 W |
| Ratings | IP67 |
| Size / Dimension [x] | 10.43 in |
| Size / Dimension [x] | 265 mm |
| Size / Dimension [y] | 3.13 " |
| Size / Dimension [y] | 79.5 mm |
| Size / Dimension [z] | 46 mm |
| Size / Dimension [z] | 1.81 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Weight | 1.5 kg |
| Weight | 3.3 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LE150S140 Series
1.47A 53 ~ 107V Constant Current LED Driver AC DC Converter Topology 1 Output
