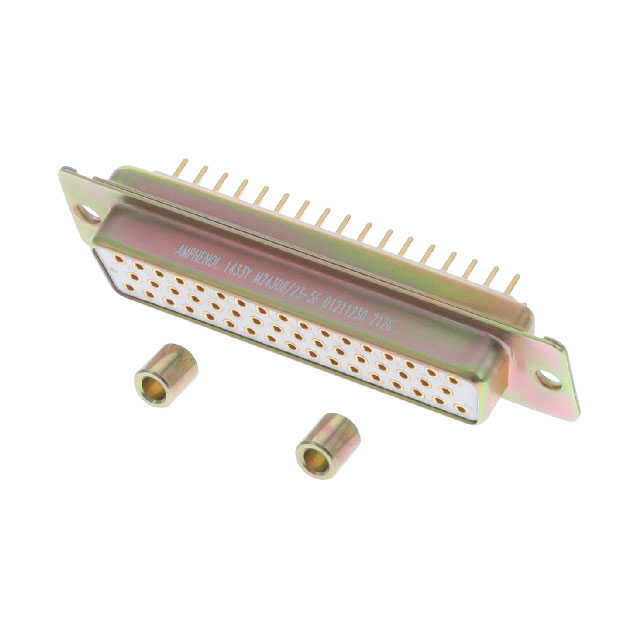

M24308/23-5F
ActiveAmphenol Interconnect India
DSUB CONN,STRAIGHT, SOCKET, CADM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M24308/23-5F
ActiveAmphenol Interconnect India
DSUB CONN,STRAIGHT, SOCKET, CADM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M24308/23-5F |
|---|---|
| Color | Natural |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Cadmium Plated, Steel |
| Shell Size, Connector Layout | 5 |
| Termination | Solder |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 125.64 | |
| 10 | $ 125.63 | |||
| 25 | $ 123.18 | |||
| 50 | $ 110.21 | |||
| 100 | $ 99.72 | |||
| Tray | 1 | $ 43.84 | ||
| 10 | $ 40.23 | |||
| 25 | $ 38.68 | |||
| 40 | $ 37.39 | |||
| 80 | $ 35.33 | |||
| 230 | $ 34.29 | |||
Description
General part information
M24308/23 Series
50 Position D-Sub Receptacle, Female Sockets Connector
