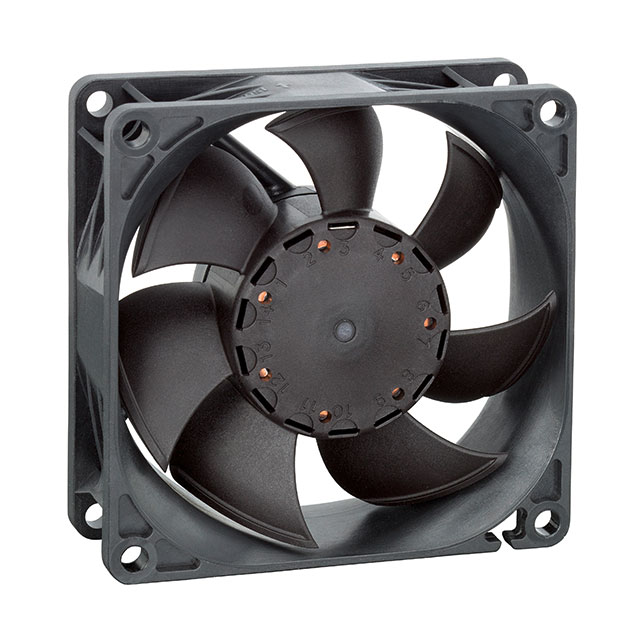

8452/2H4P

Active

ebm-papst Inc.

FAN AXIAL 80X25.4MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 80X25.4MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	8452/2H4P

Air Flow	68.8 CFM
Air Flow	1.93 m³/min
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	50 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	6.8 W
RPM	6200 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	8 VDC
Weight	0.231 lb
Weight	104.78 g
Width [y]	25.4 mm

Part	Material - Frame	Voltage - Rated	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Fan Type	Lifetime @ Temp.	Noise	Width [y]	Termination	Weight	Weight	Material - Blade	RPM	Power (Watts)	Features	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]
ebm-papst Inc. 8452/2H4P	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	12 VDC	Ball	15 V	8 VDC	Tubeaxial	60000 Hrs	50 dB(A)	25.4 mm	4 Wire Leads	0.231 lb	104.78 g	Fiberglass Reinforced Nylon Polyamide (PA)	6200 RPM	6.8 W	PWM Control Speed Sensor (Tach)	68.8 CFM	1.93 m³/min	-20 °C	70 °C	-20 C	70 °C	80 mm	80 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.06

General part information

Fan Tubeaxial 12VDC Square - 80mm L x 80mm H Ball 68.8 CFM (1.93m³/min) 4 Wire Leads
