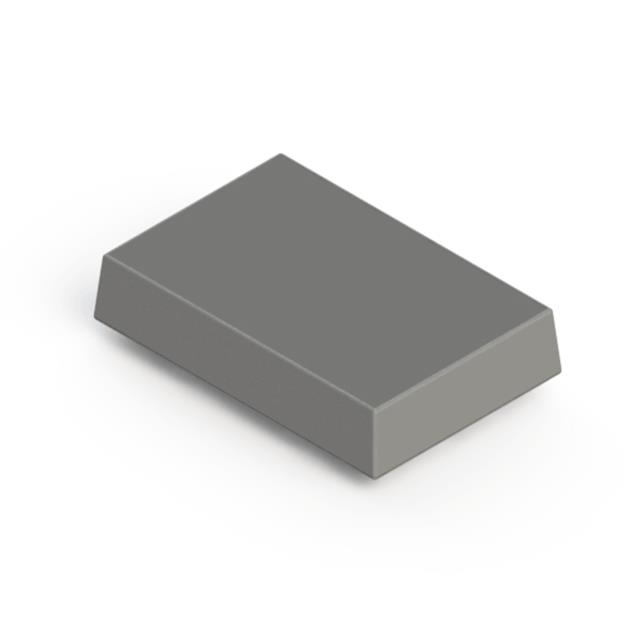

093I,GY

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS GRAY 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	093I,GY

Area (L x W)	388 cm²
Area (L x W)	60.2 in²
Color	Gray
Container Type	Box
Design	Cover Included, Hand Held
Features	PCB Supports
Height [z]	48.26 mm
Height [z]	1.9 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.64 lb
Weight	290.3 g

Part	Material	Features	Thickness	Thickness	Color	Area (L x W)	Area (L x W)	Material Flammability Rating	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Weight	Weight	Container Type	Ratings	Design
Serpac 093I,BK	Plastic ABS	PCB Supports	2.54 mm	0.1 in	Black	60.2 in²	388 cm²	UL94 HB	48.26 mm	1.9 in	9.5 "	6.34 "	161.04 mm 241.3 mm	0.64 lb	290.3 g	Box	IP40 NEMA 1
Serpac 093I,AL	Plastic ABS	PCB Supports	2.54 mm	0.1 in	Almond	60.2 in²	388 cm²	UL94 HB	48.26 mm	1.9 in	9.5 "	6.34 "	161.04 mm 241.3 mm	0.64 lb	290.3 g	Box	IP40 NEMA 1	Cover Included Hand Held
Serpac 093I,GY	Plastic ABS	PCB Supports	2.54 mm	0.1 in	Gray	60.2 in²	388 cm²	UL94 HB	48.26 mm	1.9 in	9.5 "	6.34 "	161.04 mm 241.3 mm	0.64 lb	290.3 g	Box	IP40 NEMA 1	Cover Included Hand Held

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Gray Hand Held, Cover Included 9.500" L x 6.340" W (241.30mm x 161.04mm) X 1.900" (48.26mm)
