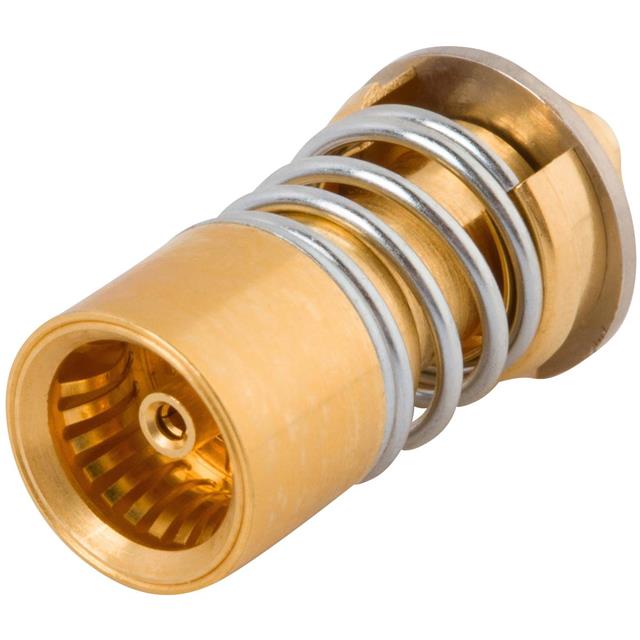

8017-6002

Active

Amphenol SV Microwave

CONN TERMINATOR JACK BMA 50 OHM

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN TERMINATOR JACK BMA 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	8017-6002

Body Finish	Gold
Body Material	Stainless Steel
Connector Style	BMA
Connector Type	Female Socket, Jack
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE), Polychlorotrifluoroethylene (PCTFE)
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging, Cap

Part	Body Finish	Impedance	Frequency - Max [Max]	Contact Material	Contact Finish	Body Material	Mounting Type	Dielectric Material	Connector Style	Connector Type
Amphenol SV Microwave 8017-6002	Gold	50 Ohms	12 GHz	Beryllium Copper	Gold	Stainless Steel	Cap Free Hanging	Polychlorotrifluoroethylene (PCTFE) Polytetrafluoroethylene (PTFE)	BMA	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 187.22

General part information

Terminator Coax Connector Jack, Female Socket BMA 50 Ohms
