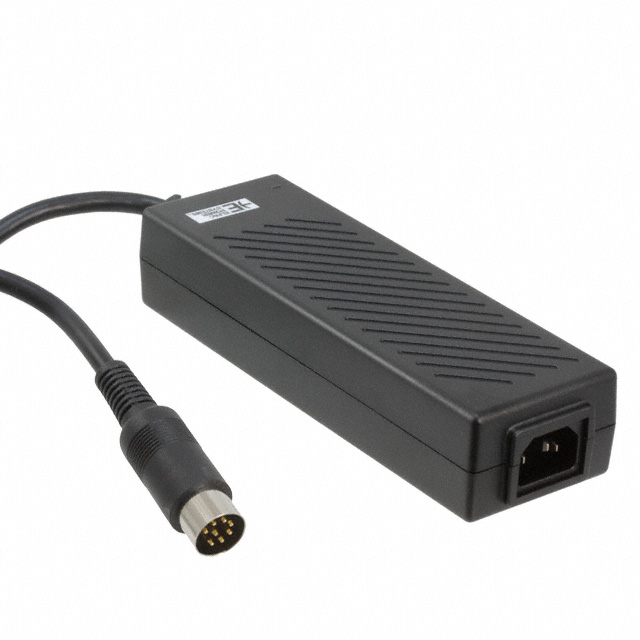

MWA120018A-12A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 18V 121W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MWA120018A-12A
ActiveInventus Power
AC/DC DESKTOP ADAPTER 18V 121W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MWA120018A-12A |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cTUVus |
| Cord Length | 1.83 m |
| Cord Length | 72 in |
| Current - Output (Max) [Max] | 6.7 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord |
| No Load Power Consumption | 500 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | 8 Pin |
| Output Connector | DIN |
| Power (Watts) | 121 W |
| Region Utilized | International |
| Size / Dimension [x] | 192 mm |
| Size / Dimension [x] | 7.56 " |
| Size / Dimension [y] | 62.2 mm |
| Size / Dimension [y] | 2.45 " |
| Size / Dimension [z] | 1.52 in |
| Size / Dimension [z] | 38.7 mm |
| Voltage - Output | 18 V |
| Weight | 725.7 g |
| Weight | 1.6 lbs |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 240 | $ 63.90 | |
Description
General part information
MWA120018 Series
18V 121 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
