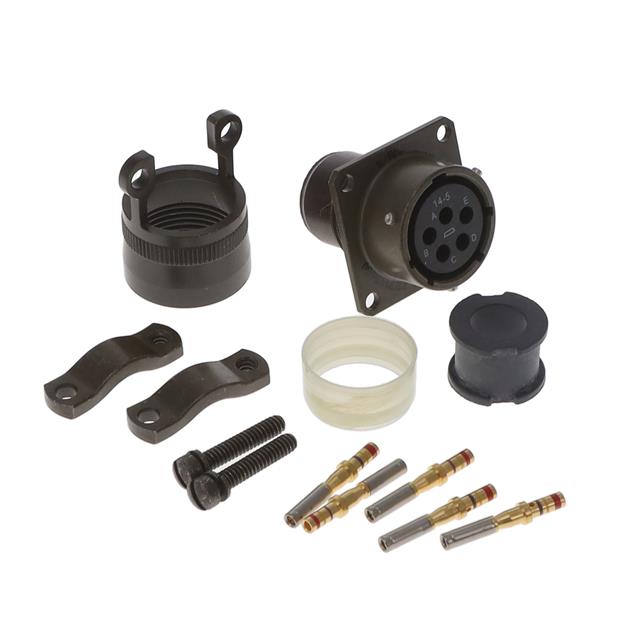

PT00SE14-5S-SR

Active

Amphenol Industrial Operations

PTSE 5C 5#16 SKT RECP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT00SE14-5S-SR

Active

Amphenol Industrial Operations

PTSE 5C 5#16 SKT RECP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT00SE14-5S-SR

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	Environment Sealed
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert	14-5
Shielding	Unshielded
Termination	Crimp

PT00SE Series

Part	Color	Shielding	Insert Material	Shell Finish	Contact Material	Connector Type	Mounting Feature	Primary Material	Fastening Type	Orientation	Backshell Material, Plating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Qualification	Number of Positions	Ingress Protection	Termination	Features	Contact Finish - Mating	Shell Material	Type	Contact Shape	Contact Size	Note	Housing Color	Contact Type	Contact Size	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Size [custom]
Amphenol Industrial Operations PT00SE-22-7S(SR)	Olive Drab	Unshielded	Neoprene	Olive Drab Chromate over Cadmium	Copper Alloy	Receptacle Female Sockets	Flange	Metal	Bayonet Lock	N	Aluminum Olive Drab Cadmium	22-7	-55 °C	125 °C	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I	7	Environment Sealed	Crimp	Backshell Cable Clamp Strain Relief	Gold	Aluminum
Amphenol Industrial Operations PT00SE-22-7PLC		Unshielded	Neoprene	Chromate over Cadmium		Receptacle Housing	Flange		Bayonet Lock	N		22-7	-55 °C	125 °C		MIL-DTL-26482 Series I	7	Environment Resistant		Backshell		Aluminum	For Male Pins	Circular	8 Coax	Contacts Not Included	Olive Drab	Crimp
Amphenol Industrial Operations PT00SE16-26S-LC		Unshielded	Neoprene	Chromate over Cadmium		Receptacle Housing	Flange		Bayonet Lock	N			-55 °C	125 °C		MIL-DTL-26482 Series I	26	Environment Resistant		Backshell		Aluminum	For Female Sockets	Circular		Contacts Not Included	Olive Drab	Crimp	20	16	26
Amphenol Industrial Operations PT00SE16-76P-LC		Unshielded	Neoprene	Chromate over Cadmium		Receptacle Housing	Flange		Bayonet Lock	N			-55 °C	125 °C		MIL-DTL-26482 Series I		Environment Resistant		Backshell		Aluminum	For Male Pins	Circular		Contacts Not Included	Olive Drab	Crimp	12 20	16	76	14	9	5	12
Amphenol Industrial Operations PT00SE-14-18S(SR)LC		Unshielded	Neoprene	Chromate over Cadmium		Receptacle Housing	Flange		Bayonet Lock	N			-55 °C	125 °C		MIL-DTL-26482 Series I	18	Environment Resistant		Cable Clamp		Aluminum	For Female Sockets	Circular		Contacts Not Included	Olive Drab	Crimp	20	14	18
Amphenol Industrial Operations PT00SE14-5S-SR	Olive Drab	Unshielded	Neoprene	Olive Drab Chromate over Cadmium	Copper Alloy	Receptacle Female Sockets	Flange	Metal	Bayonet Lock	N	Aluminum Olive Drab Cadmium	14-5	-55 °C	125 °C	Aerospace Industrial Instrumentation Mass Transit Military	MIL-DTL-26482 Series I		Environment Sealed	Crimp	Backshell Cable Clamp Strain Relief	Gold	Aluminum

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 73.74
	Bulk	1	$ 60.51
		10	$ 52.44
		25	$ 46.27
		50	$ 41.40
		100	$ 36.30

Description

General part information

PT00SE Series

5 Position Circular Connector Receptacle, Female Sockets Crimp
