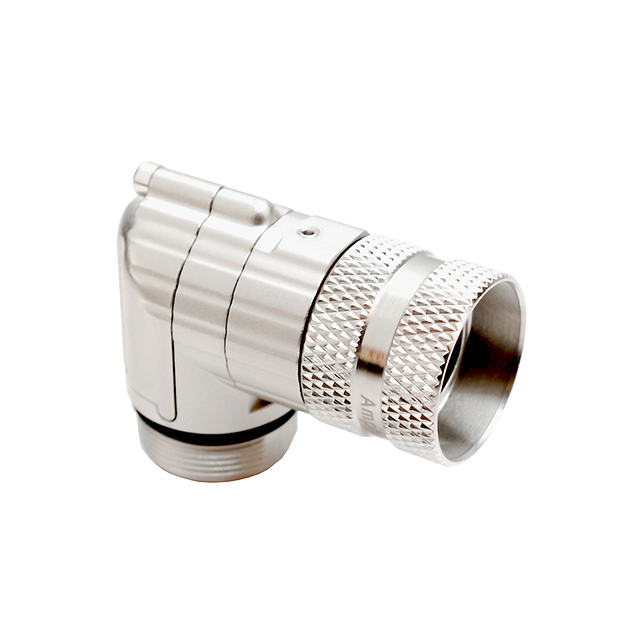

MA1EAP1700

Active

Amphenol Sine Systems Corp

CONN PLUG HSG F/M 17P INLN RA

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG HSG F/M 17P INLN RA

Technical Specifications

Parameters and characteristics for this part

Specification	MA1EAP1700

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm
Contact Type	Crimp
Features	Coupling Nut, Rotatable
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Note	Contacts Not Included
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	P
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-17
Shielding	Shielded
Type	For Female Sockets or Male Pins

Part	Note	Contact Type	Shell Size - Insert	Number of Positions	Mounting Type	Housing Color	Material Flammability Rating	Orientation	Connector Type	Insert Material	Contact Shape	Shell Material	Ingress Protection	Features	Shielding	Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Contact Size	Number of Positions
Amphenol Sine Systems Corp MA1EAP1200	Contacts Not Included	Crimp	M23-12	12	Free Hanging (In-Line) Right Angle	Silver	UL94 V-0	P	Plug Housing	Polyamide (PA66) Nylon 6/6	Circular	Zinc Die Cast	IP67 - Dust Tight Waterproof	Coupling Nut Rotatable	Shielded	For Female Sockets or Male Pins	-20 C	130 °C	Nickel	1 mm
Amphenol Sine Systems Corp MA1EAP1700	Contacts Not Included	Crimp	M23-17		Free Hanging (In-Line) Right Angle	Silver	UL94 V-0	P	Plug Housing	Polyamide (PA66) Nylon 6/6	Circular	Zinc Die Cast	IP67 - Dust Tight Waterproof	Coupling Nut Rotatable	Shielded	For Female Sockets or Male Pins	-20 C	130 °C	Nickel	1 mm
Amphenol Sine Systems Corp MA1EAP1600	Contacts Not Included	Crimp	M23-16		Free Hanging (In-Line) Right Angle	Silver	UL94 V-0	P	Plug Housing	Polyamide (PA66) Nylon 6/6	Circular	Zinc Die Cast	IP67 - Dust Tight Waterproof	Coupling Nut Rotatable	Shielded	For Female Sockets or Male Pins	-20 C	130 °C	Nickel	1 mm	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Plug Housing Free Hanging (In-Line), Right Angle Coupling Nut, Rotatable
