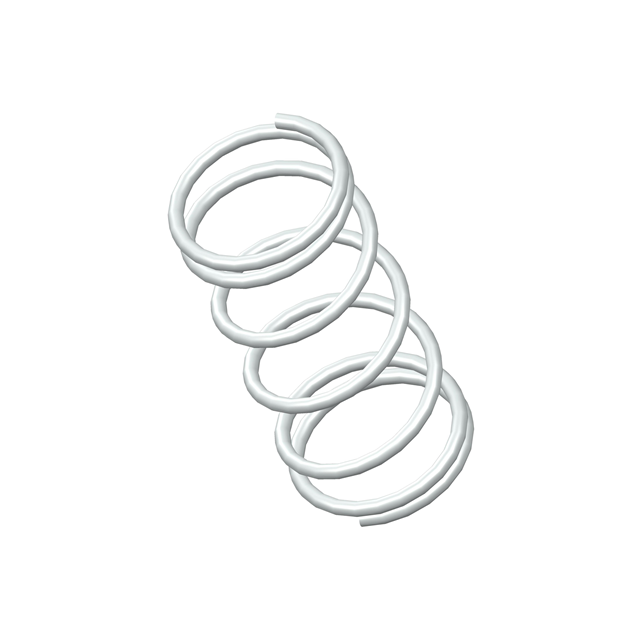

A13-70CS

Active

Century Spring Corp

COMP O= .875,L= 1.97,W= .072

Search across all available documentation for this part.

Active

Century Spring Corp

COMP O= .875,L= 1.97,W= .072

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Free Length [x]	Free Length [x]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Wire Diameter [diameter]	Wire Diameter [diameter]	Material	Rate	End Style	Finish	Free Length	Free Length	Diameter - Outside [diameter]	Wire Diameter	Wire Diameter
Century Spring Corp A13-70CS	0.875 in	22.23 mm	50.04 mm	1.97 "	0.731 "	18.57 mm	1.83 mm	0.072 in	Stainless Steel	15 lbs/in	Closed	None
Century Spring Corp A13-9CS		6.35 mm			0.164 in	4.17 mm			Spring Steel	81 lbs/in	Closed Ground	None	0.63 in	16 mm	0.25 in	1.09 mm	0.043 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

COMP O= .875,L= 1.97,W= .072
