0034.3107.PT

Active

SCHURTER Inc.

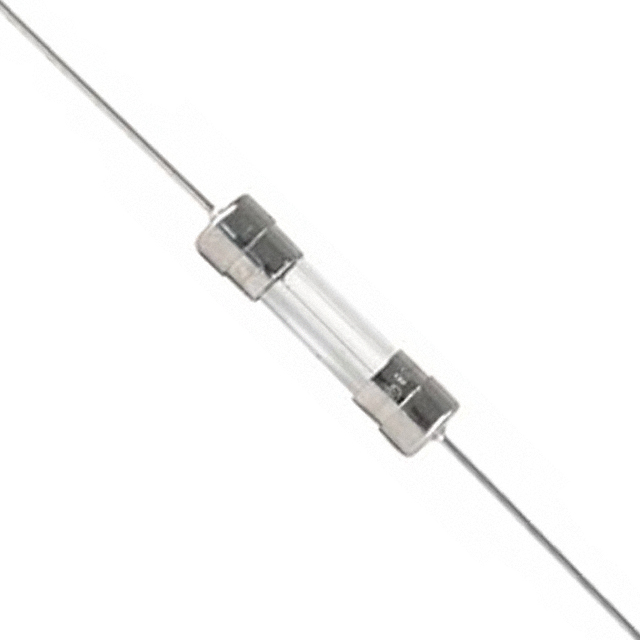

FUSE GLASS 100MA 250VAC 5X20MM

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE GLASS 100MA 250VAC 5X20MM

Technical Specifications

Parameters and characteristics for this part

Specification	0034.3107.PT

Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	100 mA
Melting I²t	0.107
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Slow Blow
Size / Dimension [diameter]	5.4 mm
Size / Dimension [diameter]	0.213 in
Size / Dimension [x]	0.886 "
Size / Dimension [x]	22.5 mm
Voltage Rating - AC	250 V

Part	Response Time	Package / Case [x]	Package / Case [y]	Melting I²t	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Rating - AC	Mounting Type
SCHURTER Inc. 0034.3107.PT	Slow Blow	5 mm	20 mm	0.107	35 A	-55 °C	125 °C	100 mA	0.886 "	22.5 mm	5.4 mm	0.213 in	250 V	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 mA 250 V AC DC Fuse Cartridge, Glass Through Hole 5mm x 20mm (Axial)
