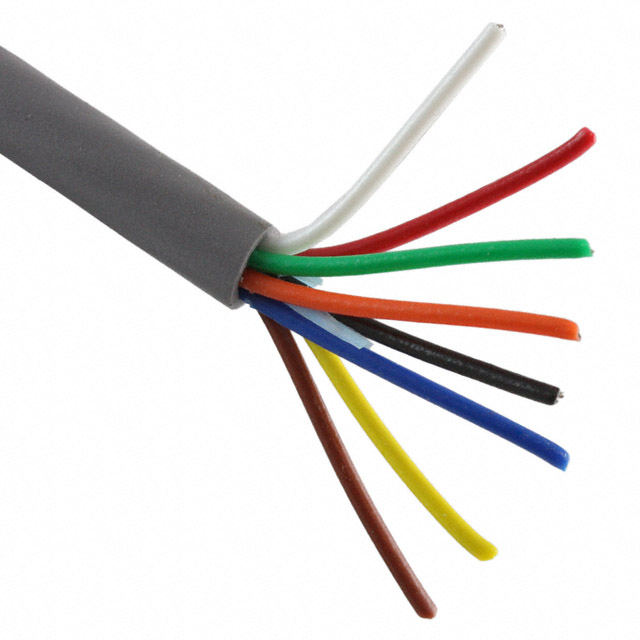

1178C SL001

Active

ALPHA WIRE

CABLE 8COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1178C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	150 V
Wire Gauge	22 AWG

Part	Number of Conductors	Jacket (Insulation) Material	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Wire Gauge	Length [x]	Length [x]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length	Length
ALPHA WIRE 1178C SL002	8	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Copper Tinned	22 AWG	500 '	152.4 m	Slate	5.84 mm	0.23 in	Communication Control	150 V	7	30 AWG	Multi-Conductor
ALPHA WIRE 1178C SL005	8	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Copper Tinned	22 AWG	100 ft	30.5 m	Slate	5.84 mm	0.23 in	Communication Control	150 V	7	30 AWG	Multi-Conductor
ALPHA WIRE 1178C SL001	8	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	-20 C	80 C	Copper Tinned	22 AWG			Slate	5.84 mm	0.23 in	Communication Control	150 V	7	30 AWG	Multi-Conductor	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 952.21

General part information

8 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
