YTQ-105-01-L-Q

Active

Samtec Inc.

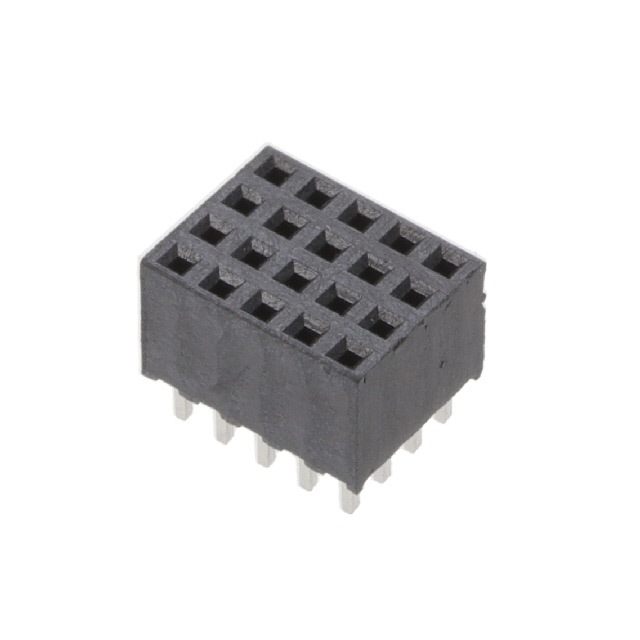

CONN SKT 2MM PCB 4ROW 20POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SKT 2MM PCB 4ROW 20POS

Technical Specifications

Parameters and characteristics for this part

Specification	YTQ-105-01-L-Q

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Material	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Insulation Color	Insulation Material	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Number of Positions Loaded	Fastening Type	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Samtec Inc. YTQ-105-01-L-Q	-55 °C	125 °C	Square	Phosphor Bronze	Solder	1.27 µm	50 µin	Forked	20	0.079 in	2 mm	Gold	Black	Liquid Crystal Polymer (LCP)	Through Hole	0.09 "	2.29 mm	Tin	All	Push-Pull	Socket	0.079 in	2 mm	6.35 mm	0.25 in	10 çin	0.25 çm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Socket Connector 0.079" (2.00mm) Through Hole Gold
