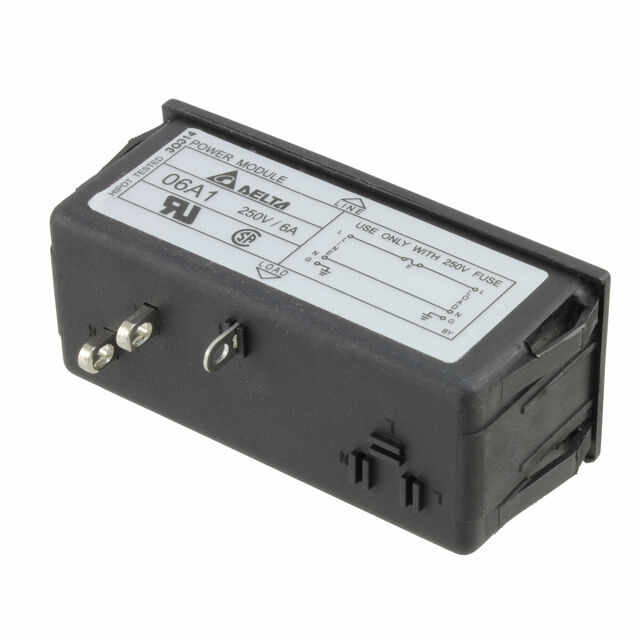

06A1

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	06A1

Accomodates a Fuse	True
Approval Agency	SEMKO, UL, CSA, CE
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	66 mm
Panel Cutout Dimensions [y]	27 mm
Panel Thickness [Max]	1.78 mm
Panel Thickness [Max]	0.07 in
Panel Thickness [Min]	0.04 in
Panel Thickness [Min]	1.02 mm
Termination	Quick Connect

Part	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Switch Features	Connector Style	Termination	Material Flammability Rating	Mounting Type	Approval Agency	Fuse Holder, Drawer	Accomodates a Fuse	Filter Type	Connector Type
Delta Electronics 06A2D	0.04 in	1.02 mm	1.78 mm	0.07 in	27 mm	66 mm	Switch On-Off	IEC 320-C14	Quick Connect	UL94 V-0	Panel Mount Snap-In	CE CSA SEMKO UL	Fuse Holder		Unfiltered - Commercial	Receptacle Male Blades - Module
Delta Electronics 06A1	0.04 in	1.02 mm	1.78 mm	0.07 in	27 mm	66 mm		IEC 320-C14	Quick Connect	UL94 V-0	Panel Mount Snap-In	CE CSA SEMKO UL	Fuse Holder		Unfiltered - Commercial	Receptacle Male Blades - Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
