H3DWH-1006G

Active

Assmann WSW Components

IDC CBL - HHKR10H/AE10G/HHPL10H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR10H/AE10G/HHPL10H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DWH-1006G

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key (Plug), Polarizing Key, Flange, Strain Relief (Socket)
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Features	Connector Type	Length [x]	Length [x]	Shielding	Contact Finish	Number of Rows	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch - Connector	Pitch - Connector	Color	Pitch - Cable	Pitch - Cable	Length	Length	Length
Assmann WSW Components H3DWH-1018M	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Socket to Plug	457.2 mm	1.5 ft	Unshielded	Gold	2	IDC	15 µin	0.38 µm	10	0.1 in	2.54 mm	Multiple Ribbon	0.05 "	1.27 mm
Assmann WSW Components H3DWH-1006G	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Socket to Plug			Unshielded	Gold	2	IDC	15 µin	0.38 µm	10	0.1 in	2.54 mm		0.05 "	1.27 mm	152.4 mm	6 "	0.5 '
Assmann WSW Components H3DWH-1036G	Flange Polarizing Key Polarizing Key (Plug) Strain Relief (Socket)	Socket to Plug	914.4 mm	3 ft	Unshielded	Gold	2	IDC	15 µin	0.38 µm	10	0.1 in	2.54 mm		0.05 "	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

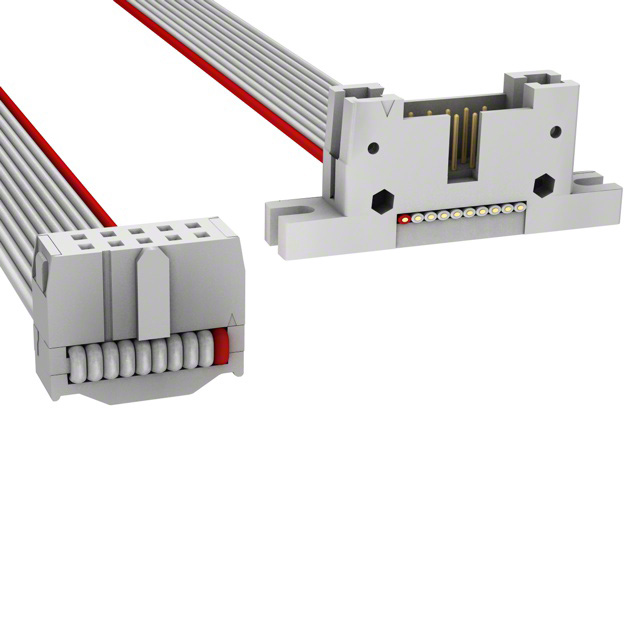

10 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
