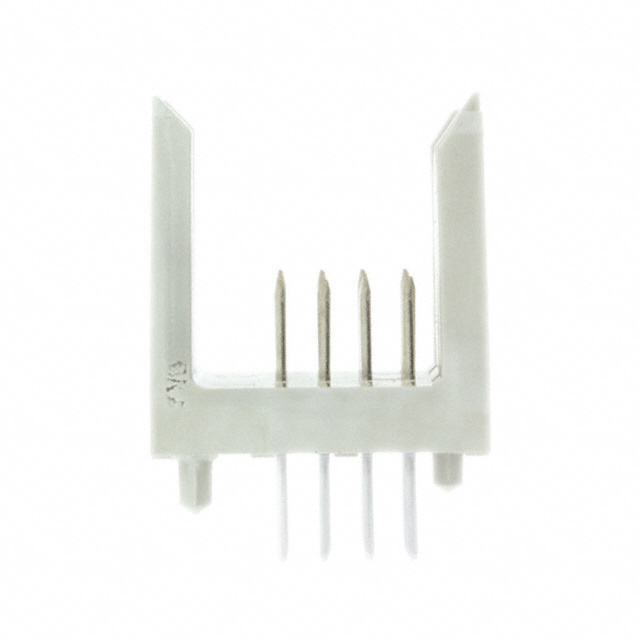

MP2-H024-41S1-S-LR

Active

3M (TC)

CONN HEADER FUTUREBUS+ 24POS PCB

Search across all available documentation for this part.

Active

3M (TC)

CONN HEADER FUTUREBUS+ 24POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	MP2-H024-41S1-S-LR

Color	Beige
Connector Style	Futurebus+®
Connector Type	Header, Male Pins
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Current Rating (Amps)	1.5 A
Features	Mating Guide, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

Part	Pitch [x]	Pitch [x]	Connector Type	Color	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Mounting Type	Termination	Features	Current Rating (Amps)	Connector Style	Connector Usage
3M (TC) MP2-H024-41P1-S-LR	0.079 in	2 mm	Header Male Pins	Beige	UL94 V-0	105 ░C	-55 °C	Gold	24	3 Áin	0.076 Ám	All	Through Hole	Press-Fit	Board Guide	1.5 A
3M (TC) MP2-H024-41P1-S-TR30	0.079 in	2 mm	Header Male Pins	Beige	UL94 V-0	125 °C	-55 °C	Gold	24	3 Áin	0.076 Ám	All	Through Hole	Press-Fit	Board Guide Mating Guide	1.5 A	Futurebus+®	Backplane
3M (TC) MP2-H024-41S1-S-LR	0.079 in	2 mm	Header Male Pins	Beige	UL94 V-0	125 °C	-55 °C	Gold	24	3 Áin	0.076 Ám	All	Through Hole	Solder	Board Guide Mating Guide	1.5 A	Futurebus+®	Backplane
