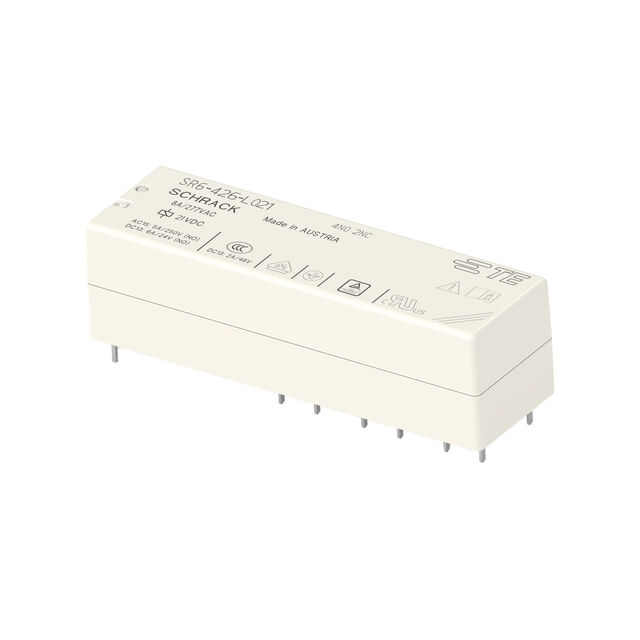

2-1558737-7
ActiveTE Connectivity Potter & Brumfield Relays
SR6-426-L021
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-1558737-7
ActiveTE Connectivity Potter & Brumfield Relays
SR6-426-L021
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-1558737-7 |
|---|---|
| Approval Agency | cURus, TUV, VDE |
| Coil Current | 33.3 mA |
| Coil Insulation | Class F |
| Coil Resistance | 630 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 21 VDC |
| Contact Form | 6PST-4NO/2NC (4 Form A, 2 Form B) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 14.7 VDC |
| Must Release Voltage | 2.1 VDC |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 25.90 | |
| 10 | $ 24.60 | |||
| 100 | $ 20.72 | |||
Description
General part information
SR6-426 Series
General Purpose Relay 6PST-4NO/2NC (4 Form A, 2 Form B) 21VDC Coil Through Hole
