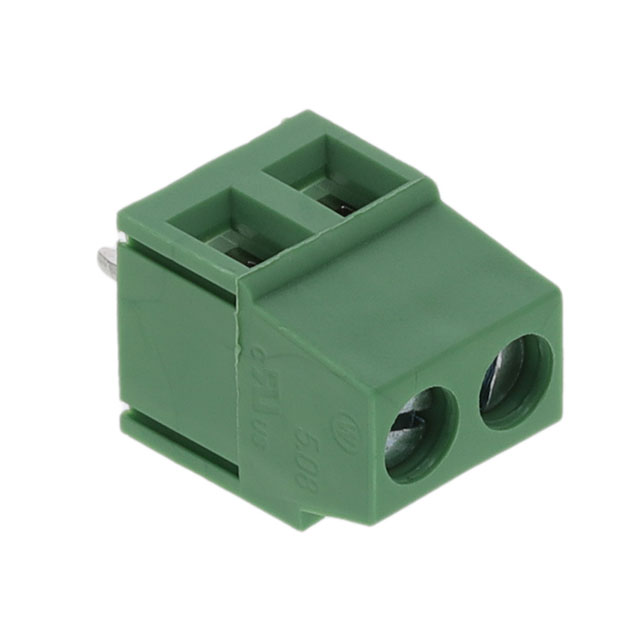

OSTF351E0210050
ActiveOn Shore Technology Inc.
TERM BLK 2P SIDE ENT 5.08MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTF351E0210050
ActiveOn Shore Technology Inc.
TERM BLK 2P SIDE ENT 5.08MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTF351E0210050 |
|---|---|
| Color | Green |
| Current | 16 A |
| Features | Interlocking (Side) |
| Housing Material | Polyamide (PA), Nylon |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 2 |
| Screw Material - Plating | Tri-Chromate Plated, Steel |
| Screw Thread | M2.5 |
| Torque - Screw | 3.9 Lb-In |
| Torque - Screw | 0.44 Nm |
| Voltage | 300 V |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 12 AWG |
| Wire Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.95 | |
| 10 | $ 0.59 | |||
| 100 | $ 0.45 | |||
| 1000 | $ 0.32 | |||
| 5000 | $ 0.25 | |||
| 10000 | $ 0.25 | |||
Description
General part information
OSTF351 Series
2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
