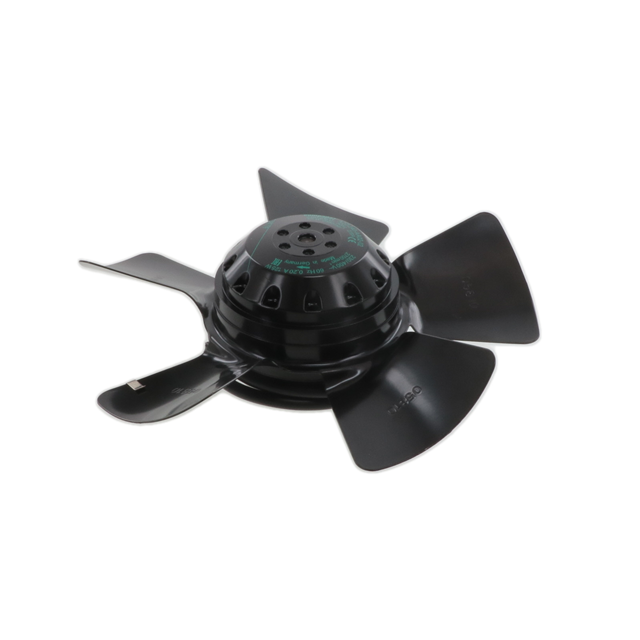

A2D240-AA02-02

Active

ebm-papst Inc.

AC AXIAL FAN

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIAL FAN

Technical Specifications

Parameters and characteristics for this part

Specification	A2D240-AA02-02

Approval Agency	CE
Bearing Type	Ball
Current Rating (Amps) [Max]	0.87 A
Current Rating (Amps) [Min]	0.5 A
Fan Type	Tubeaxial, 3 Phase
Features	Dual Voltage
Ingress Protection	IP44
Material - Blade	Steel
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	125 W
RPM	2700 RPM
Size / Dimension [diameter]	240 mm
Termination	7 Wire Leads with Splice Terminals
Voltage - Rated	230 VAC, 400 VAC
Width [y]	72.5 mm

Part	Ingress Protection	RPM	Voltage - Rated	Termination	Fan Type	Features	Approval Agency	Material - Blade	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Size / Dimension [diameter]	Power (Watts)	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Width [y]	Bearing Type
ebm-papst Inc. A2D240-AA02-02	IP44	2700 RPM	230 VAC 400 VAC	7 Wire Leads with Splice Terminals	Tubeaxial 3 Phase	Dual Voltage	CE	Steel	-25 °C	-25 °C	70 °C	70 °C	240 mm	125 W	0.5 A	0.87 A	72.5 mm	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial, 3 Phase 230/400VAC Round - 240mm Dia Ball 7 Wire Leads with Splice Terminals
