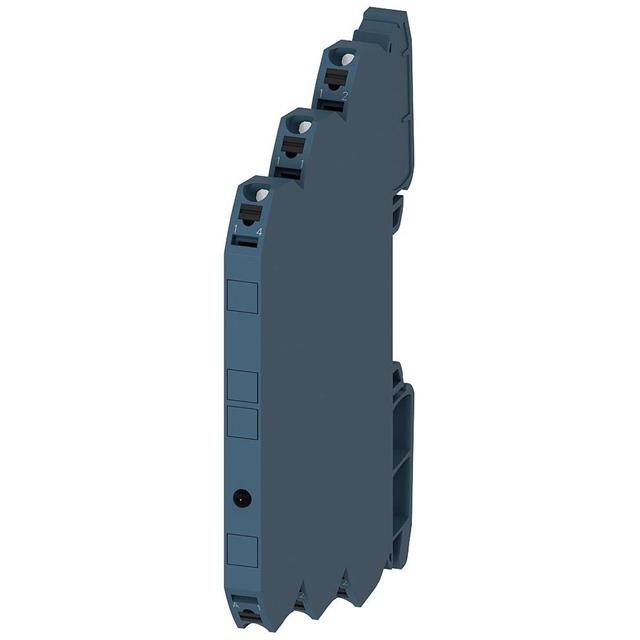

3RQ30382AF00

Active

Siemens

RELAY GEN PURPOSE SPDT 3A 230V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsET 200SP Distributed I/O System Datasheet +1

3RQ30382AF00

Active

Siemens

RELAY GEN PURPOSE SPDT 3A 230V

Deep-Dive with AI

DocumentsET 200SP Distributed I/O System Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RQ30382AF00

Approval Agency	CSA, UL, CCC, EAC
Coil Type	Non Latching
Coil Voltage	230 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	3 A
Features	Lighted Indicator
Load - Max Switching	750 VA
Mounting Type	DIN Rail
Operate Time	9 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	19 ms
Switching Voltage	250 VAC
Termination Style	Spring Terminal

3RQ303 Series

Part	Mounting Type	Features	Coil Type	Approval Agency	Release Time	Load - Max Switching	Coil Voltage	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage	Contact Material	Termination Style	Contact Form	Operate Time	Relay Type
Siemens 3RQ30382AB00	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	14 ms	750 VA	24 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Spring Terminal	SPDT (1 Form C)	12 ms	General Purpose
Siemens 3RQ30381AB00	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	14 ms	750 VA	24 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Screw Terminal	SPDT (1 Form C)	12 ms	General Purpose
Siemens 3RQ30381AE00	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	17 ms	750 VA	115 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Screw Terminal	SPDT (1 Form C)	8 ms	General Purpose
Siemens 3RQ30382AB01	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	14 ms	750 VA	24 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Spring Terminal	SPDT (1 Form C)	12 ms	General Purpose
Siemens 3RQ30381AE01	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	12 ms	750 VA	115 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Screw Terminal	SPDT (1 Form C)	12 ms	General Purpose
Siemens 3RQ30382AE01	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	17 ms	750 VA	115 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Spring Terminal	SPDT (1 Form C)	8 ms	General Purpose
Siemens 3RQ30382AE00	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	17 ms	750 VA	115 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Spring Terminal	SPDT (1 Form C)	8 ms	General Purpose
Siemens 3RQ30381AF00	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	19 ms	750 VA	230 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Screw Terminal	SPDT (1 Form C)	9 ms	General Purpose
Siemens 3RQ30381AF01	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	19 ms	750 VA	230 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Screw Terminal	SPDT (1 Form C)	9 ms	General Purpose
Siemens 3RQ30382AF00	DIN Rail	Lighted Indicator	Non Latching	CCC CSA EAC UL	19 ms	750 VA	230 VAC	3 A	-25 °C	60 °C	250 VAC	Silver Tin Oxide (AgSnO)	Spring Terminal	SPDT (1 Form C)	9 ms	General Purpose

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 134.77
