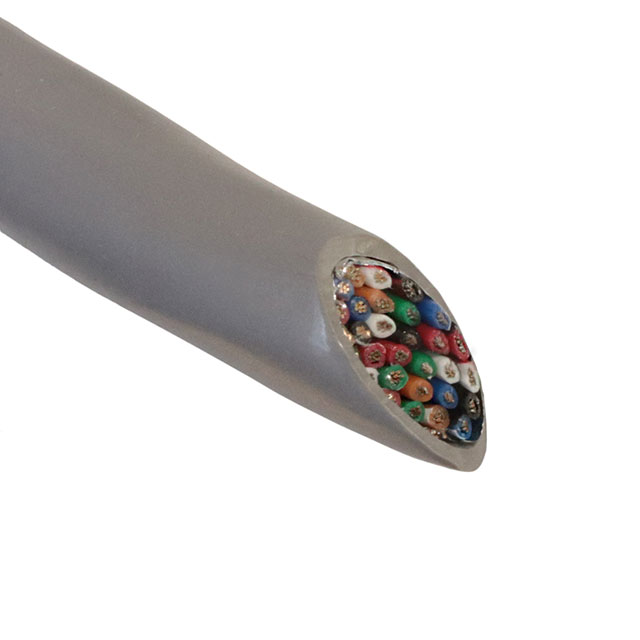

1299/30C SL001

Active

ALPHA WIRE

CABLE 30COND 22AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 30COND 22AWG SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1299/30C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	9.88 mm
Jacket (Insulation) Diameter [diameter]	0.389 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	30
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Number of Conductors	Usage	Conductor Material	Shield Material	Shield Coverage	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Cable Type	Wire Gauge	Conductor Insulation	Voltage	Length	Length
ALPHA WIRE 1299/30C SL002	Poly-Vinyl Chloride (PVC)	30	Communication Control	Copper Tinned	Aluminum	100 %	500 '	152.4 m	7	30 AWG	Slate	-20 C	80 C	Foil	9.88 mm	0.389 in	Drain Wire	Multi-Conductor	22 AWG	Poly-Vinyl Chloride (PVC)	300 V
ALPHA WIRE 1299/30C SL005	Poly-Vinyl Chloride (PVC)	30	Communication Control	Copper Tinned	Aluminum	100 %	100 ft	30.5 m	7	30 AWG	Slate	-20 C	80 C	Foil	9.88 mm	0.389 in	Drain Wire	Multi-Conductor	22 AWG	Poly-Vinyl Chloride (PVC)	300 V
ALPHA WIRE 1299/30C SL001	Poly-Vinyl Chloride (PVC)	30	Communication Control	Copper Tinned	Aluminum	100 %			7	30 AWG	Slate	-20 C	80 C	Foil	9.88 mm	0.389 in	Drain Wire	Multi-Conductor	22 AWG	Poly-Vinyl Chloride (PVC)	300 V	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 6508.86

General part information

30 Conductor Multi-Conductor Cable Slate 22 AWG Foil 1000.0' (304.8m)
