66183-505
ActiveLaird Thermal Systems, Inc.

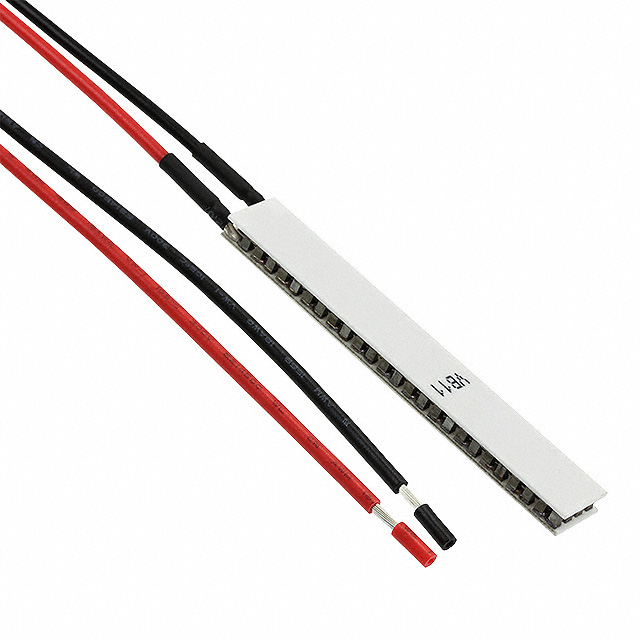

PELTIER MOD CP14,51,06,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
66183-505
ActiveLaird Thermal Systems, Inc.
PELTIER MOD CP14,51,06,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 66183-505 |
|---|---|
| Current - Max [Max] | 6 A |
| Delta Tmax @ Th | 67 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.81 mm |
| Number of Stages | 1 |
| Operating Temperature | 80 °C |
| Qmax @ Th | 20.6 W |
| Resistance | 900 mOhms |
| Size / Dimension [x] | 62 mm |
| Size / Dimension [y] | 9.5 mm |
| Voltage - Max [Max] | 5.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 29.69 | |
| 5 | $ 27.83 | |||
| 10 | $ 27.16 | |||
| 25 | $ 26.14 | |||
| 50 | $ 25.47 | |||
| 100 | $ 24.79 | |||
Description
General part information
66183 Series
Peltier Module 20.6W @ 25°C 6 A 80°C
