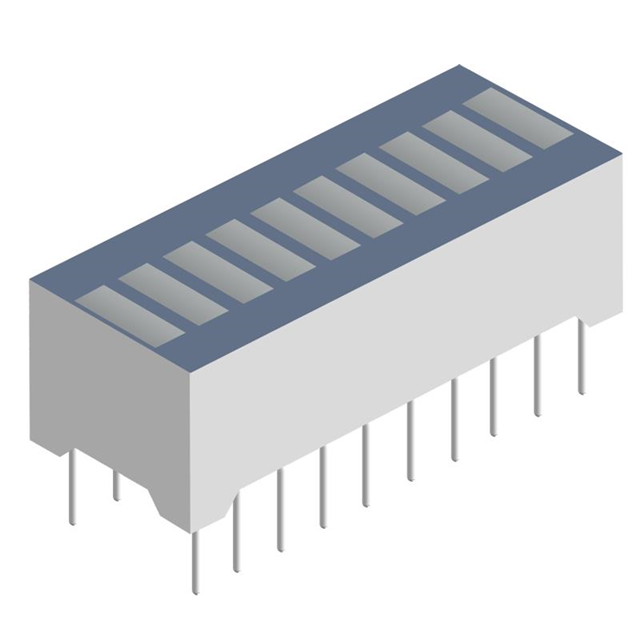

XGMYKX10D
ActiveSunLED
LED CBI 5.08X1.78MM 10SEG Y VERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XGMYKX10D
ActiveSunLED
LED CBI 5.08X1.78MM 10SEG Y VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XGMYKX10D |
|---|---|
| Color | Yellow |
| Configuration | 10 Wide |
| Configuration | DIP, Bar |
| Current | 10 mA |
| Lens Size [x] | 5.08 mm |
| Lens Size [y] | 1.78 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating | 64.99 mcd |
| Mounting Type | Through Hole |
| Voltage Rating | 1.95 V |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.47 | |
| 10 | $ 2.36 | |||
| 100 | $ 1.79 | |||
| 500 | $ 1.62 | |||
Description
General part information
XGMYKX10 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Yellow 1.95V 10mA Rectangle with Flat Top 5.08mm x 1.78mm Through Hole
