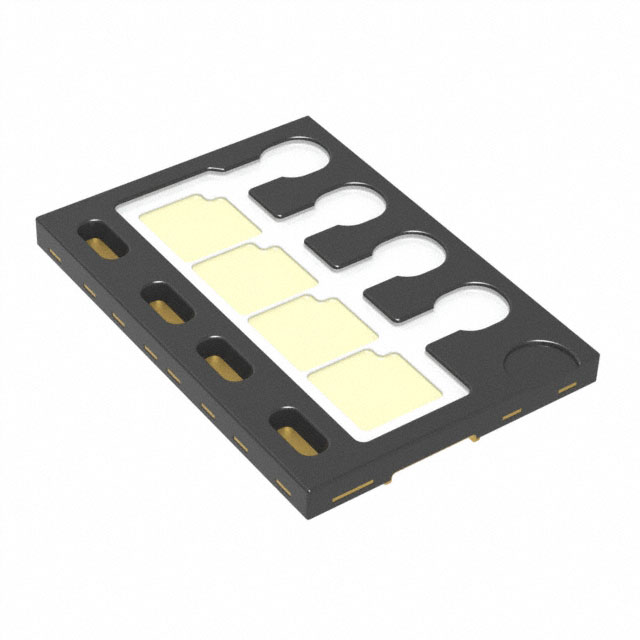

KW H4L531.TE-Z6R6-EBVFFCBB46-4LZL

Active

ams-OSRAM USA INC.

LED OSLON WHITE SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED OSLON WHITE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	KW H4L531.TE-Z6R6-EBVFFCBB46-4LZL

Color	White
Current - Max [Max]	1.2 A
Current - Test	1 A
Height - Seated (Max) [Max] [z]	0.49 mm
Height - Seated (Max) [Max] [z]	0.019 in
Mounting Type	Surface Mount
Package / Case	8-SMD, No Lead
Size / Dimension [x]	5.3 mm
Size / Dimension [x]	0.209 "
Size / Dimension [y]	3.75 mm
Size / Dimension [y]	0.148 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	1 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	12.3 V

Part	Color	Current - Max [Max]	Supplier Device Package	Package / Case	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Thermal Resistance of Package [custom]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ams-OSRAM USA INC. KW H4L531.TE-Z6R6-EBVFFCBB46-4LZL	White	1.2 A	SMD	8-SMD No Lead	1 A	12.3 V	120 °	3.75 mm	0.148 in	5.3 mm	0.209 "	1 °C/W	Surface Mount	0.49 mm	0.019 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 3.05

General part information

LED Lighting OSLON® Black Flat White 12.3V 1A 120° 8-SMD, No Lead
