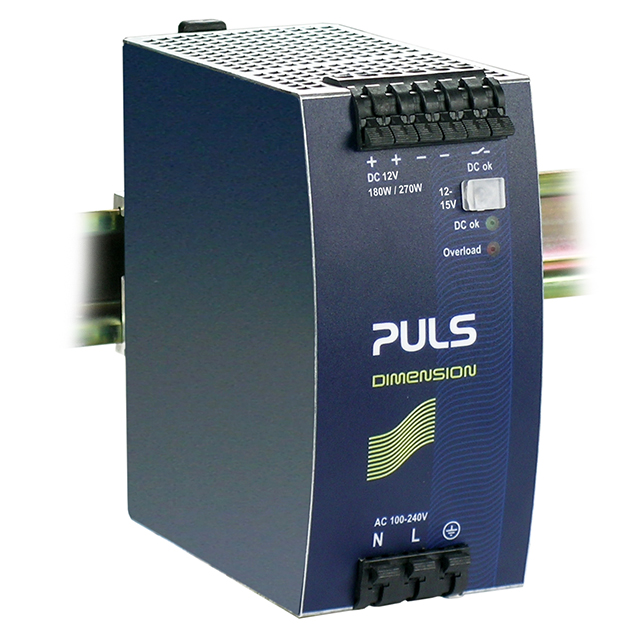

QS10.121-A1

Obsolete

PULS, LP

AC/DC DIN RAIL SUPPLY 12V 180W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QS10.121-A1

Obsolete

PULS, LP

AC/DC DIN RAIL SUPPLY 12V 180W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QS10.121-A1

AC Voltage - Input [Max]	240 VAC
AC Voltage - Input [Min]	100 VAC
Applications	ITE (Commercial), Hazardous Locations
Approval Agency	CSA, IECEx, UL, ATEX, EAC, IEC
Current - Output (Max) [Max]	15 A
Efficiency	91.8 %
Features	PFC, Adjustable Output, Load Sharing
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	180 W
Size / Dimension [x]	4.61 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	2.36 "
Size / Dimension [y]	60 mm
Size / Dimension [z]	124 mm
Size / Dimension [z]	4.88 "
Standard Number	61010-2-201, 60950-1, 508, Class I Div 2
Voltage - Isolation	500 V
Voltage - Output 1	12 V

QS10 Series

Part	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Output 1	Applications	Efficiency	Standard Number	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current - Output (Max) [Max]	Input Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Number of Outputs	Features	Voltage - Isolation
PULS, LP QS10.481-A1	276 VAC	85 VAC	48 V	Hazardous Locations ITE (Commercial)	92 %	508 60950-1 61010-2-201 Class I Div 2	240 W	-10 °C	70 °C	ATEX CSA IEC IECEx UL	5 A	AC	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	1	Adjustable Output Load Sharing PFC	500 V
PULS, LP QS10.481-D1	276 VAC	85 VAC	48 V	ITE (Commercial)	92 %	508 60950-1 61010-2-201	240 W	-10 °C	70 °C	EAC IEC UL	5 A	AC	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	1	Adjustable Output Load Sharing PFC	500 V
PULS, LP QS10.241-D1	276 VAC	85 VAC	24 V	ITE (Commercial)	93.5 %	508 60950-1 61010-2-201	240 W	-25 °C	70 °C	EAC IEC UL	10 A	AC	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	1	Adjustable Output Load Sharing PFC	500 V
PULS, LP QS10.241	276 VAC	85 VAC	24 V	ITE (Commercial)	93.5 %	508 60950-1 61010-2-201 Class I Div 2 F47	240 W	0 °C	70 °C	ABS CSA DNV GL EAC IEC SEMI UL	10 A	AC	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	1	Adjustable Output Load Sharing PFC	500 V
PULS, LP QS10.301	276 VAC	85 VAC	30 V	ITE (Commercial)	93.5 %	508 60950-1 61010-2-201 Class I Div 2	240 W	-10 °C	70 °C	ABS CSA DNV GL EAC IEC UL	8 A	AC	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	1	Adjustable Output Load Sharing PFC	500 V
PULS, LP QS10.121-A1	240 VAC	100 VAC	12 V	Hazardous Locations ITE (Commercial)	91.8 %	508 60950-1 61010-2-201 Class I Div 2	180 W	-25 °C	70 °C	ATEX CSA EAC IEC IECEx UL	15 A	AC	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	1	Adjustable Output Load Sharing PFC	500 V
PULS, LP QS10.DNET	276 VAC	85 VAC	24 V	ITE (Commercial)	92.7 %	508 60950-1 61010-2-201 Class I Div 2 F47	192 W	-10 °C	70 °C	ABS CSA DNV GL EAC IEC SEMI UL	8 A	AC	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	1	Adjustable Output Load Sharing PFC	500 V
PULS, LP QS10.121	276 VAC	85 VAC	12 V	ITE (Commercial)	91.8 %	508 60950-1 61010-2-201 Class I Div 2 F47	180 W	0 °C	70 °C	ABS CSA DNV GL EAC IEC SEMI UL	15 A	AC	124 mm	2.36 "	60 mm	4.88 "	4.61 "	117 mm	1	Adjustable Output Load Sharing PFC	500 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QS10 Series

AC/DC DIN RAIL SUPPLY 12V 180W

Documents

Technical documentation and resources
