7090.9010.55

Obsolete

SCHURTER Inc.

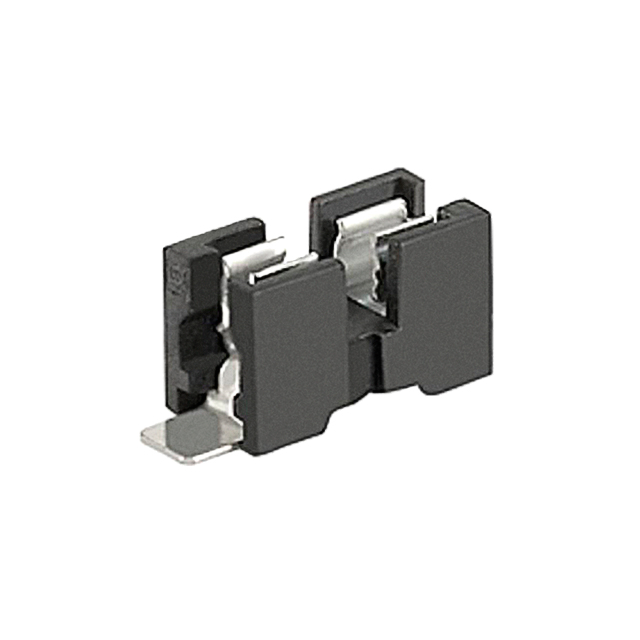

FUSE HLDR CARTRIDGE 125V 7A SMD

Search across all available documentation for this part.

Obsolete

SCHURTER Inc.

FUSE HLDR CARTRIDGE 125V 7A SMD

Technical Specifications

Parameters and characteristics for this part

Specification	7090.9010.55

Contact Finish	Tin
Contact Material	Bronze
Current Rating (Amps)	7 A
For Use With/Related Products [x]	2 mm
For Use With/Related Products [y]	7 mm
Fuse Size [diameter]	0.079 "
Fuse Size [diameter]	2 mm
Fuse Size [x]	0.276 "
Fuse Size [x]	7 mm
Fuse Type	Cartridge
Fuseholder Type	Holder
Mounting Type	Surface Mount
Number of Circuits	1
Termination Style	Gull Wing
Voltage	125 V

Part	For Use With/Related Products [x]	For Use With/Related Products [y]	Fuse Size [diameter]	Fuse Size [x]	Fuse Size [x]	Fuse Size [diameter]	Termination Style	Mounting Type	Number of Circuits	Fuse Type	Contact Material	Contact Finish	Current Rating (Amps)	Voltage	Fuseholder Type
SCHURTER Inc. 7090.9010.55	2 mm	7 mm	0.079 "	0.276 "	7 mm	2 mm	Gull Wing	Surface Mount	1	Cartridge	Bronze	Tin	7 A	125 V	Holder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fuse Holder 7 A 125V 1 Circuit Cartridge Surface Mount

Technical documentation and resources

No documents available
