C3BES-2036M

Active

CW Industries

IDC CABLE - CSR20S/AE20M/CCE20S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSR20S/AE20M/CCE20S

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Rows	Number of Positions	Length [x]	Length [x]	Shielding	Pitch - Cable	Pitch - Cable	Features	Cable Termination	Contact Finish	Pitch - Connector	Pitch - Connector	Color	Length	Length	Length
CW Industries C3BES-2036G	2.54 µm	100 µin	Socket to Card Edge	2	20	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm
CW Industries C3BES-2018G	2.54 µm	100 µin	Socket to Card Edge	2	20	1.5 ft	457.2 mm	Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm
CW Industries C3BES-2636G	2.54 µm	100 µin	Socket to Card Edge	2	26	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm
CW Industries C3BES-2018M	2.54 µm	100 µin	Socket to Card Edge	2	20	1.5 ft	457.2 mm	Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm	Multiple Ribbon
CW Industries C3BES-2618M	2.54 µm	100 µin	Socket to Card Edge	2	26	1.5 ft	457.2 mm	Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm	Multiple Ribbon
CW Industries C3BES-2036M	2.54 µm	100 µin	Socket to Card Edge	2	20	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm	Multiple Ribbon
CW Industries C3BES-2618G	2.54 µm	100 µin	Socket to Card Edge	2	26	1.5 ft	457.2 mm	Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm
CW Industries C3BES-2006G	2.54 µm	100 µin	Socket to Card Edge	2	20			Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm		152.4 mm	6 "	0.5 '
CW Industries C3BES-2636M	2.54 µm	100 µin	Socket to Card Edge	2	26	3 ft	914.4 mm	Unshielded	0.05 "	1.27 mm	Strain Relief	IDC	Tin	0.1 in	2.54 mm	Multiple Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

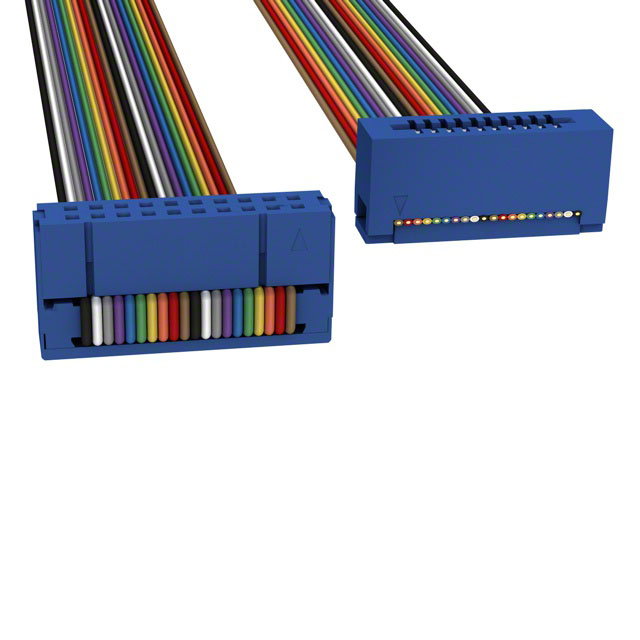

20 Position Cable Assembly Rectangular Socket to Card Edge 3.00' (914.40mm)
