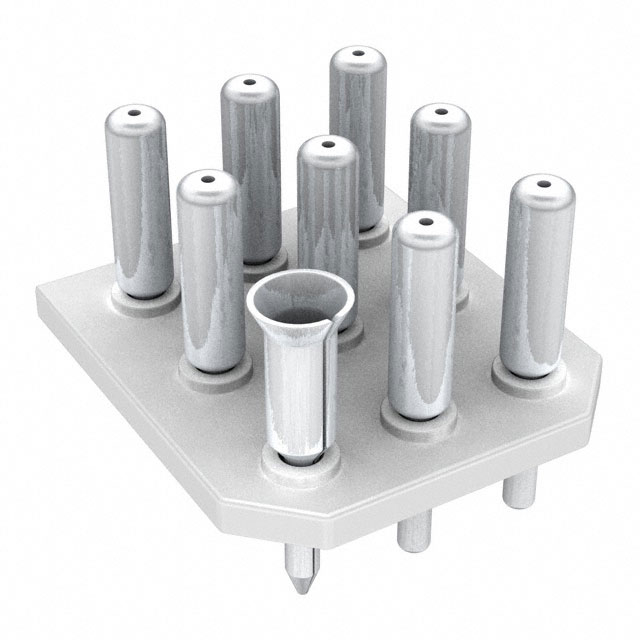

CONN HEADER VERT 9POS 5.03MM

Search across all available documentation for this part.

Obsolete

Molex

CONN HEADER VERT 9POS 5.03MM

Technical Specifications

Parameters and characteristics for this part

Specification	0009185098

Applications	Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.172 in
Contact Length - Post	4.37 mm
Contact Shape	Circular
Contact Type	Male Pin, Female Socket
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.093 in
Insulation Height	2.38 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	3
Pitch - Mating	5.03 mm
Pitch - Mating	0.198 in
Row Spacing - Mating	0.198 in
Row Spacing - Mating	5.03 mm
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

Part	Contact Length - Post	Contact Length - Post	Shrouding	Contact Shape	Termination	Mounting Type	Number of Rows	Style	Insulation Color	Number of Positions Loaded	Insulation Material	Applications	Material Flammability Rating	Insulation Height	Insulation Height	Contact Type	Fastening Type	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions Loaded	Number of Positions	Row Spacing - Mating	Row Spacing - Mating
Molex 0009185121
Molex 0009185954	0.172 in	4.37 mm	Unshrouded	Circular	Solder	Through Hole	1	Board to Cable/Wire	Natural	3	Polyamide (PA66) Nylon 6/6	General Purpose Telecommunications	UL94 V-0	0.093 in	2.38 mm	Female Socket Male Pin	Push-Pull	Tin	5.03 mm	0.198 in	Header
Molex 0009185098	0.172 in	4.37 mm	Unshrouded	Circular	Solder	Through Hole	3	Board to Cable/Wire	Natural		Polyamide (PA66) Nylon 6/6	General Purpose Telecommunications	UL94 V-0	0.093 in	2.38 mm	Female Socket Male Pin	Push-Pull	Tin	5.03 mm	0.198 in	Header	All	9	0.198 in	5.03 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 9 position 0.198" (5.03mm)
