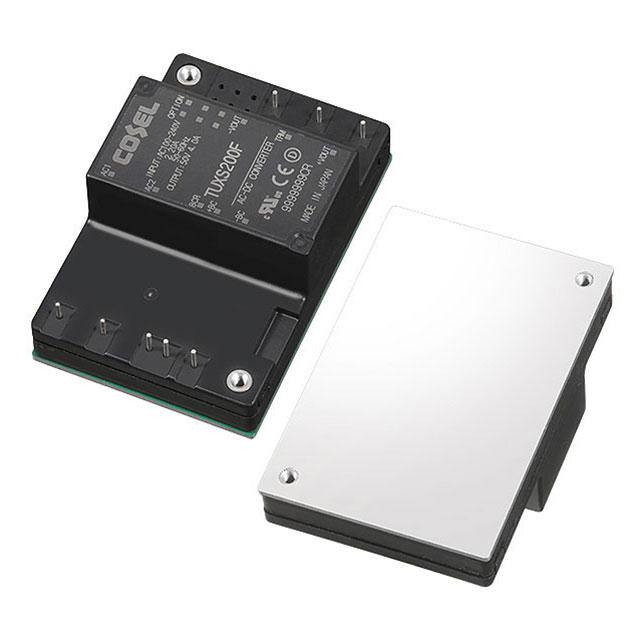

TUXS200F24

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V 200W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC CONVERTER 24V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	TUXS200F24

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output (Max) [Max]	8.3 A
Efficiency	91 %
Features	PFC, Adjustable Output, Universal Input
Line Regulation	48 mV
Load Regulation	48 mV
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module
Power (Watts)	200 W
Size / Dimension [x]	3 "
Size / Dimension [x]	76.2 mm
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	1.12 in
Size / Dimension [z]	28.4 mm
Type	Enclosed
Voltage - Output 1	24 V

Part	Type	Load Regulation	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Efficiency	Features	Package / Case	Number of Outputs	Approval Agency	Line Regulation	Current - Output (Max) [Max]	Voltage - Output 1
Cosel USA, Inc. TUXS200F32	Enclosed	64 mV	ITE (Commercial)	-40 °C	100 °C	Through Hole	1.12 in	2 in	3 "	50.8 mm	28.4 mm	76.2 mm	200 W	92 %	Adjustable Output PFC Universal Input	8-DIP Module	1	CE cURus TUV	64 mV	6.2 A	32 V
Cosel USA, Inc. TUXS200F24	Enclosed	48 mV	ITE (Commercial)	-40 °C	100 °C	Through Hole	1.12 in	2 in	3 "	50.8 mm	28.4 mm	76.2 mm	200 W	91 %	Adjustable Output PFC Universal Input	8-DIP Module	1	CE cURus TUV	48 mV	8.3 A	24 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 8.3A 85 ~ 264 VAC Input
