DF19L-20P-1H(52)

Active

Hirose Electric USA, Inc.

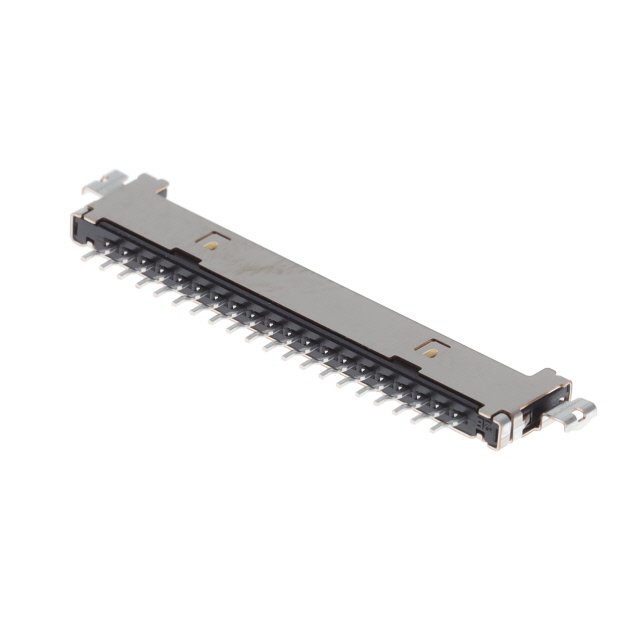

CONN HEADER BRD EDGE 20P 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DF19L-20P-1H(52)

Active

Hirose Electric USA, Inc.

CONN HEADER BRD EDGE 20P 1MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF19L-20P-1H(52)

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3.94 µin
Contact Finish Thickness - Mating	0.1 µm
Contact Finish Thickness - Post	3.94 Áin
Contact Finish Thickness - Post	0.1 Ám
Contact Material	Phosphor Bronze
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Friction Lock
Features	Solder Retention
Insulation Color	Black
Insulation Height	0.057 in
Insulation Height	1.45 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Board Edge, Cutout, Surface Mount, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 3 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 VAC

DF19L Series

Part	Mounting Type	Insulation Color	Number of Positions Loaded	Connector Type	Features	Number of Positions	Style	Contact Finish - Mating	Number of Rows	Voltage Rating	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Pitch - Mating	Pitch - Mating	Contact Material	Insulation Height	Insulation Height	Termination	Shrouding	Material Flammability Rating	Fastening Type	Contact Finish - Post	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Hirose Electric USA, Inc. DF19L-30P-1H(54)	Board Edge Cutout Surface Mount Right Angle	Black	All	Receptacle	Solder Retention	30	Board to Cable/Wire	Gold	1	100 V	Nylon Polyamide (PA)	-35 °C	85 °C	Male Pin	0.039 in	1 mm	Phosphor Bronze	0.057 in	1.45 mm	Solder	Shrouded - 3 Wall	UL94 V-0	Friction Lock
Hirose Electric USA, Inc. DF19L-14P-1H(54)	Board Edge Cutout Surface Mount Right Angle	Black	All	Receptacle	Solder Retention	14	Board to Cable/Wire	Gold	1	100 V	Nylon Polyamide (PA)	-35 °C	85 °C	Male Pin	0.039 in	1 mm	Phosphor Bronze	0.057 in	1.45 mm	Solder	Shrouded - 3 Wall	UL94 V-0	Friction Lock
Hirose Electric USA, Inc. DF19L-14P-1H(59)	Board Edge Cutout Surface Mount Right Angle	Beige	All	Receptacle	Solder Retention	14	Board to Cable/Wire	Gold	1	100 V	Nylon Polyamide (PA)	-35 °C	85 °C	Male Pin	0.039 in	1 mm	Phosphor Bronze	0.057 in	1.45 mm	Solder	Shrouded - 3 Wall	UL94 V-0	Friction Lock
Hirose Electric USA, Inc. DF19L-14P-1H(56)	Board Edge Cutout Surface Mount Right Angle	Beige	All	Receptacle	Solder Retention	14	Board to Cable/Wire	Gold	1	100 V	Nylon Polyamide (PA)	-35 °C	85 °C	Male Pin	0.039 in	1 mm	Phosphor Bronze	0.057 in	1.45 mm	Solder	Shrouded - 3 Wall	UL94 V-0	Friction Lock
Hirose Electric USA, Inc. DF19L-20P-1H(52)	Board Edge Cutout Surface Mount Right Angle	Black	All	Receptacle	Solder Retention	20	Board to Cable/Wire	Gold	1	100 VAC	Nylon Polyamide (PA)	-35 °C	85 °C	Male Pin	0.039 in	1 mm	Phosphor Bronze	0.057 in	1.45 mm	Solder	Shrouded - 3 Wall	UL94 V-0	Friction Lock	Gold	Varies by Wire Gauge	3.94 µin	0.1 µm	3.94 Áin	0.1 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.58
		10	$ 1.38
		100	$ 1.23
		500	$ 1.03
	Digi-Reel®	1	$ 1.58
		10	$ 1.38
		100	$ 1.23
		500	$ 1.03
	Tape & Reel (TR)	1000	$ 0.77
		2000	$ 0.72

Description

General part information

DF19L Series

Connector Header Board Edge, Cutout; Surface Mount, Right Angle 20 position 0.039" (1.00mm)
