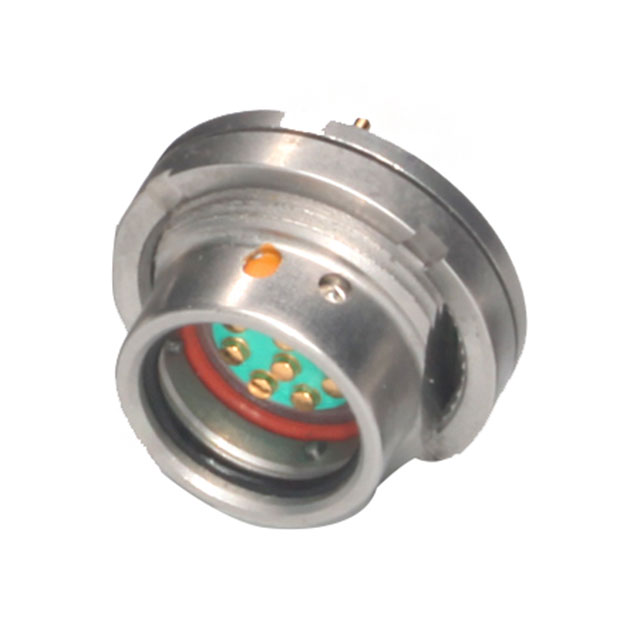

MAP-60-00B

Active

Amphenol NEXUS Technologies

CONN PLUG FMALE 10POS SOLDER

Search across all available documentation for this part.

Active

Amphenol NEXUS Technologies

CONN PLUG FMALE 10POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	MAP-60-00B

Applications	Communication Systems, Military, Audio, Video
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	0.5 A
Fastening Type	Bayonet Lock
Features	Ground
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Passivated
Shell Material	Stainless Steel
Shielding	Unshielded
Termination	Solder
Voltage Rating	60 VDC

Part	Applications	Fastening Type	Voltage Rating	Insert Material	Color	Number of Positions	Contact Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Shell Material	Connector Type	Mounting Feature	Shell Finish	Orientation	Contact Finish - Mating	Current Rating (Amps)	Mounting Type	Cable Opening [custom]	Cable Opening [custom]	Termination	Features
Amphenol NEXUS Technologies MAP-60-00	Audio Communication Systems Military Video	Bayonet Lock	60 VDC	Thermoplastic	Silver	10	Brass	Unshielded	85 °C	-55 °C	Metal	Stainless Steel	Female Sockets Plug	Bulkhead - Front Side Nut	Passivated	Keyed	Gold	0.5 A
Amphenol NEXUS Technologies MAP-60-50	Audio Communication Systems Military Video	Bayonet Lock	60 VDC	Thermoplastic	Black Silver	10	Brass	Unshielded	85 °C	-55 °C	Metal	Stainless Steel	Female Sockets Plug		Passivated	Keyed	Gold	0.5 A	Free Hanging (In-Line)
Amphenol NEXUS Technologies MAP-60-30	Audio Communication Systems Military Video	Bayonet Lock	60 VDC	Thermoplastic	Black Silver	10	Brass	Unshielded	85 °C	-55 °C	Metal	Stainless Steel	Female Sockets Plug		Passivated	Keyed	Gold	0.5 A	Free Hanging (In-Line)	6.35 mm	0.25 in
Amphenol NEXUS Technologies MAP-60-00B	Audio Communication Systems Military Video	Bayonet Lock	60 VDC	Thermoplastic	Silver	10	Brass	Unshielded	85 °C	-55 °C	Metal	Stainless Steel	Female Sockets Plug	Bulkhead - Front Side Nut	Passivated	Keyed	Gold	0.5 A	Panel Mount Through Hole			Solder	Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 60.28

General part information

10 Position Circular Connector Plug, Female Sockets Solder
