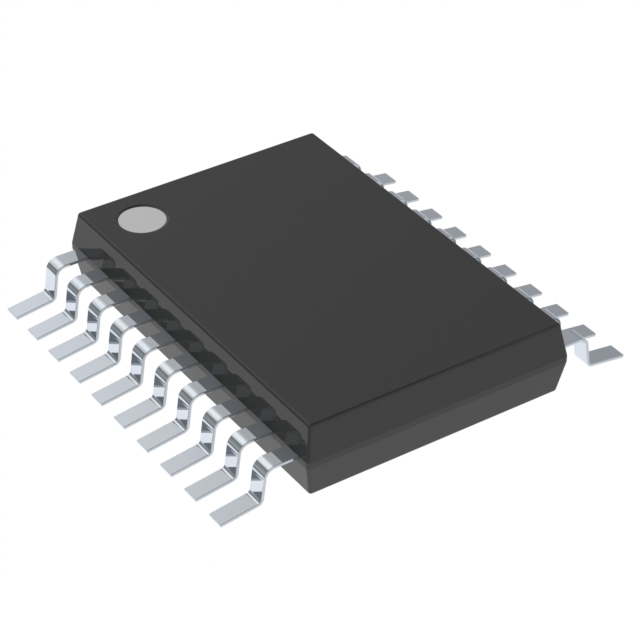

74ACT245TTR
ObsoleteSTMicroelectronics
IC TXRX NON-INVERT 5.5V 20TSSOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
74ACT245TTR
ObsoleteSTMicroelectronics
IC TXRX NON-INVERT 5.5V 20TSSOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 74ACT245TTR |
|---|---|
| Current - Output High, Low | 24 mA |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Output Type | 3-State |
| Package / Case | 20-TSSOP |
| Package / Case [x] | 0.173 in |
| Package / Case [y] | 4.4 mm |
| Supplier Device Package | 20-TSSOP |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
74ACT245 Series
Transceiver, Non-Inverting 1 Element 8 Bit per Element 3-State Output 20-TSSOP
