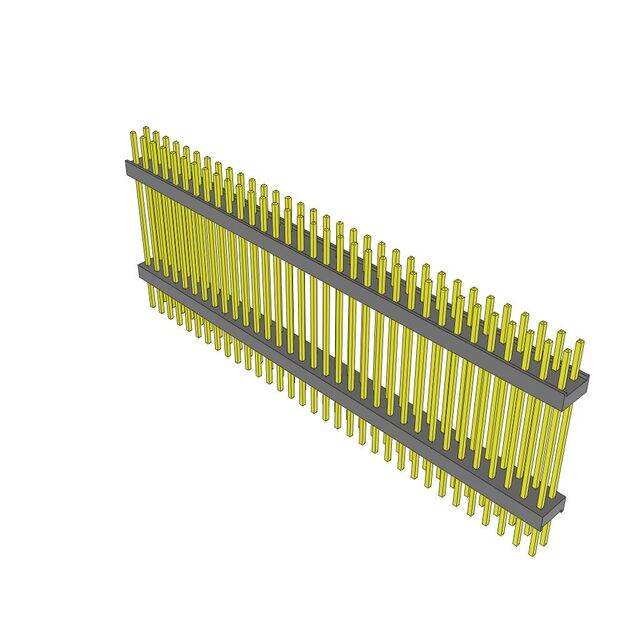

ZW-33-19-L-D-880-250

Active

Samtec Inc.

CONN BRD STACK .100" 66POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK .100" 66POS

Technical Specifications

Parameters and characteristics for this part

Specification	ZW-33-19-L-D-880-250

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	33.782 mm
Length - Overall Pin [x]	1.33 in
Length - Post (Mating) [x]	0.2 in
Length - Post (Mating) [x]	5.08 mm
Length - Stack Height [z]	22.352 mm
Length - Stack Height [z]	0.88 in
Length - Tail [x]	0.25 in
Length - Tail [x]	6.35 mm
Mounting Type	Through Hole
Number of Positions	66
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Termination	Solder

Part	Number of Positions	Length - Tail [x]	Length - Tail [x]	Termination	Mounting Type	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Contact Finish - Post (Mating)	Number of Rows	Row Spacing [x]	Row Spacing	Length - Stack Height [z]	Length - Stack Height [z]	Color	Pitch [x]	Pitch [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Post (Mating) [x]	Length - Post (Mating) [x]
Samtec Inc. ZW-33-19-L-D-880-250	66	0.25 in	6.35 mm	Solder	Through Hole	0.25 Ám	10 Áin	Gold	2	0.1 in	2.54 mm	22.352 mm	0.88 in	Black	2.54 mm	0.1 in	33.782 mm	1.33 in	0.2 in	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.44

General part information

66 Position Header Spacer Connector 0.100" (2.54mm) Gold Through Hole
