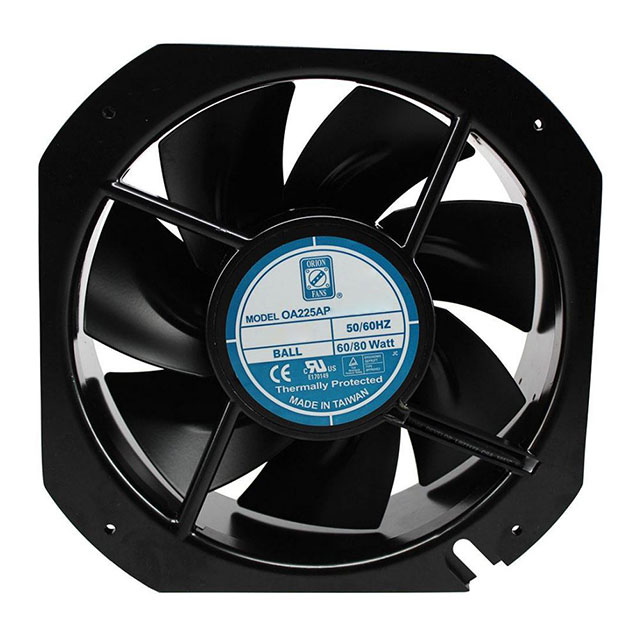

OA225AP-11-1TB1868

Active

Orion Fans

FAN 115AC 225X240X80MM IP68 TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

OA225AP-11-1TB1868

Active

Orion Fans

FAN 115AC 225X240X80MM IP68 TERM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA225AP-11-1TB1868

Air Flow	17.36 m³/min
Air Flow	620 CFM
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Steel
Material - Frame	Aluminum
Noise	66 dB
Power (Watts)	80 W
RPM	3100 RPM
Size / Dimension	Square
Size / Dimension [x]	225 mm
Size / Dimension [z]	225 mm
Static Pressure	0.74 in H2O
Static Pressure	184.3 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Weight	4.8 lbs
Weight	2.2 kg
Width [y]	80 mm

OA225AP Series

Part	Features	Air Flow	Air Flow	Termination	Width [y]	RPM	Voltage - Rated	Material - Blade	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Approval Agency	Material - Frame	Weight	Weight	Power (Watts)	Static Pressure	Static Pressure	Noise	Bearing Type	Ingress Protection
Orion Fans OA225AP-22-1WB1869K	Capacitor Thermal Overload Protector (TOP)	17.36 m³/min	620 CFM	2 Wire Leads	80 mm	3100 RPM	230 VAC	Metal	Square	225 mm	225 mm	Tubeaxial	CE cURus TUV UR	Aluminum	4.8 lbs	2.2 kg	80 W	0.74 in H2O	184.3 Pa	66 dB	Ball	IP69K
Orion Fans OA225AP-22-1TB1868	Capacitor Thermal Overload Protector (TOP)	17.36 m³/min	620 CFM	2 Terminals	80 mm	3100 RPM	230 VAC	Steel	Square	225 mm	225 mm	Tubeaxial	CE cURus TUV UR	Aluminum	4.8 lbs	2.2 kg	80 W	0.74 in H2O	184.3 Pa	66 dB	Ball	IP68 - Dust Tight Waterproof
Orion Fans OA225AP-11-1WB1869K	Capacitor Thermal Overload Protector (TOP)	17.36 m³/min	620 CFM	2 Wire Leads	80 mm	3100 RPM	115 VAC	Metal	Square	225 mm	225 mm	Tubeaxial	CE cURus TUV UR	Aluminum	4.8 lbs	2.2 kg	80 W	0.74 in H2O	184.3 Pa	66 dB	Ball	IP69K
Orion Fans OA225AP-11-1TB1869K	Capacitor Thermal Overload Protector (TOP)	17.36 m³/min	620 CFM	2 Terminals	80 mm	3100 RPM	115 VAC	Metal	Square	225 mm	225 mm	Tubeaxial	CE cURus TUV UR	Aluminum	4.8 lbs	2.2 kg	80 W	0.74 in H2O	184.3 Pa	66 dB	Ball	IP69K
Orion Fans OA225AP-22-1TB1869K	Capacitor Thermal Overload Protector (TOP)	17.36 m³/min	620 CFM	2 Terminals	80 mm	3100 RPM	230 VAC	Metal	Square	225 mm	225 mm	Tubeaxial	CE cURus TUV UR	Aluminum	4.8 lbs	2.2 kg	80 W	0.74 in H2O	184.3 Pa	66 dB	Ball	IP69K
Orion Fans OA225AP-22-1WB1868	Capacitor Thermal Overload Protector (TOP)	17.36 m³/min	620 CFM	2 Wire Leads	80 mm	3100 RPM	230 VAC	Steel	Square	225 mm	225 mm	Tubeaxial	CE cURus TUV UR	Aluminum	4.8 lbs	2.2 kg	80 W	0.74 in H2O	184.3 Pa	66 dB	Ball	IP68 - Dust Tight Waterproof
Orion Fans OA225AP-11-1WB1868	Capacitor Thermal Overload Protector (TOP)	17.36 m³/min	620 CFM	2 Wire Leads	80 mm	3100 RPM	115 VAC	Steel	Square	225 mm	225 mm	Tubeaxial	CE cURus TUV UR	Aluminum	4.8 lbs	2.2 kg	80 W	0.74 in H2O	184.3 Pa	66 dB	Ball	IP68 - Dust Tight Waterproof
Orion Fans OA225AP-11-1TB1868	Capacitor Thermal Overload Protector (TOP)	17.36 m³/min	620 CFM	2 Terminals	80 mm	3100 RPM	115 VAC	Steel	Square	225 mm	225 mm	Tubeaxial	CE cURus TUV UR	Aluminum	4.8 lbs	2.2 kg	80 W	0.74 in H2O	184.3 Pa	66 dB	Ball	IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 159.37
		10	$ 143.23
		25	$ 141.22
		50	$ 132.14

Description

General part information

OA225AP Series

Fan Tubeaxial 115VAC Square - 225mm L x 225mm H Ball 620.0 CFM (17.36m³/min) 2 Terminals
