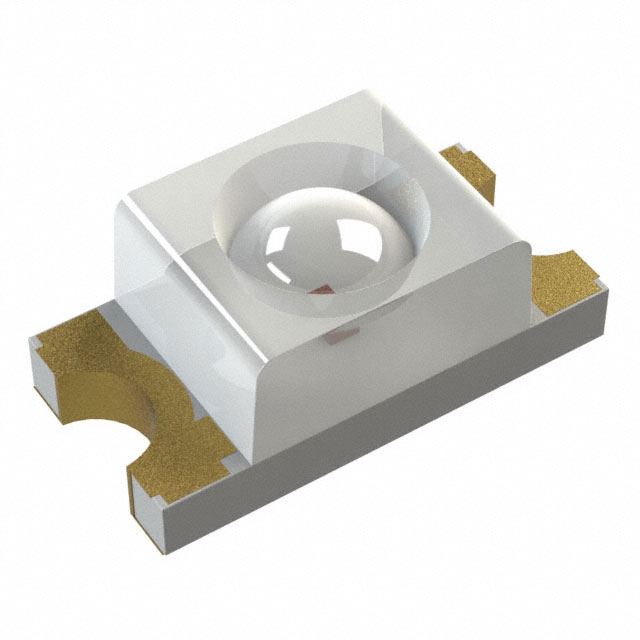

BIR-HM133A-TRB
ActiveAmerican Bright Optoelectronics Corporation
LED IR 940NM 1206 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BIR-HM133A-TRB
ActiveAmerican Bright Optoelectronics Corporation
LED IR 940NM 1206 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BIR-HM133A-TRB |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 1206 (3216 Metric) |
| Radiant Intensity (Ie) Min @ If [Min] | 1.83 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 1.25 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.54 | |
| 10 | $ 0.37 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Digi-Reel® | 1 | $ 0.54 | ||
| 10 | $ 0.37 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.20 | |||
| Tape & Reel (TR) | 3000 | $ 0.18 | ||
| 6000 | $ 0.17 | |||
| 9000 | $ 0.17 | |||
| 15000 | $ 0.16 | |||
| 21000 | $ 0.16 | |||
| 30000 | $ 0.16 | |||
Description
General part information
BIR-HM133 Series
Infrared (IR) Emitter 940nm 1.25V 50mA 1.83mW/sr @ 50mA 60° 1206 (3216 Metric)
