OSCAR41/X/NTYPEF/S/S/29

Active

Siretta Ltd

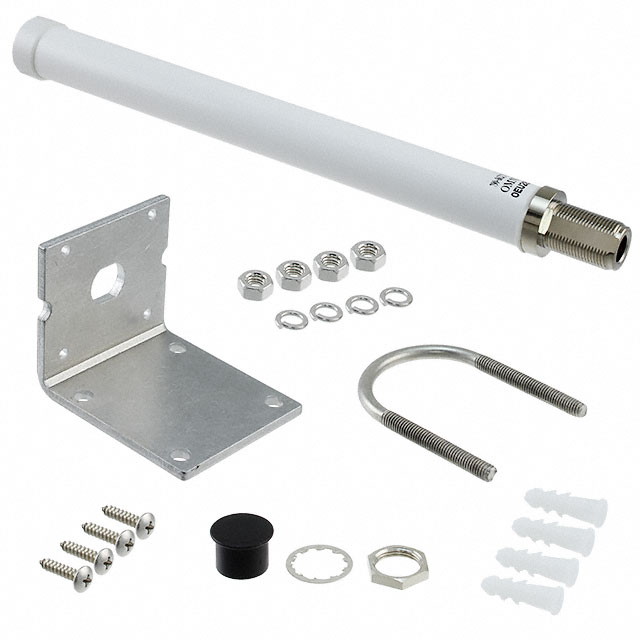

RF ANT 826MHZ/1.95GHZ WHIP STR

Search across all available documentation for this part.

Active

Siretta Ltd

RF ANT 826MHZ/1.95GHZ WHIP STR

Technical Specifications

Parameters and characteristics for this part

Specification	OSCAR41/X/NTYPEF/S/S/29

Antenna Type	Whip, Straight
Applications	3G, WLAN, Zigbee™, 2G, Bluetooth, 4G, Wi-Fi
Frequency (Center/Band)	1.95 GHz, 826 MHz
Frequency Range [Max]	2.18 GHz, 862 MHz
Frequency Range [Min]	790 MHz, 1.71 GHz
Gain	3 dBi
Height (Max) [Max]	9.331 in
Height (Max) [Max]	237 mm
Mounting Type	Bracket Mount
Number of Bands	2
RF Family/Standard	Cellular, Bluetooth, WiFi
Termination	N Type Female

Part	Applications	Termination	Gain	Antenna Type	RF Family/Standard	Frequency (Center/Band)	Mounting Type	Number of Bands	Height (Max) [Max]	Height (Max) [Max]	Frequency Range [Max]	Frequency Range [Min]
Siretta Ltd OSCAR41/X/NTYPEF/S/S/29	2G 3G 4G Bluetooth Wi-Fi WLAN Zigbee™	N Type Female	3 dBi	Whip Straight	Bluetooth Cellular WiFi	1.95 GHz 826 MHz	Bracket Mount	2	9.331 in	237 mm	2.18 GHz 862 MHz	1.71 GHz 790 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 62.26

General part information

RF ANTENNA 2G, 3G, 4G, Bluetooth, WLAN, Wi-Fi, Zigbee™ Whip, Straight N Type Female Bracket Mount

Technical documentation and resources
