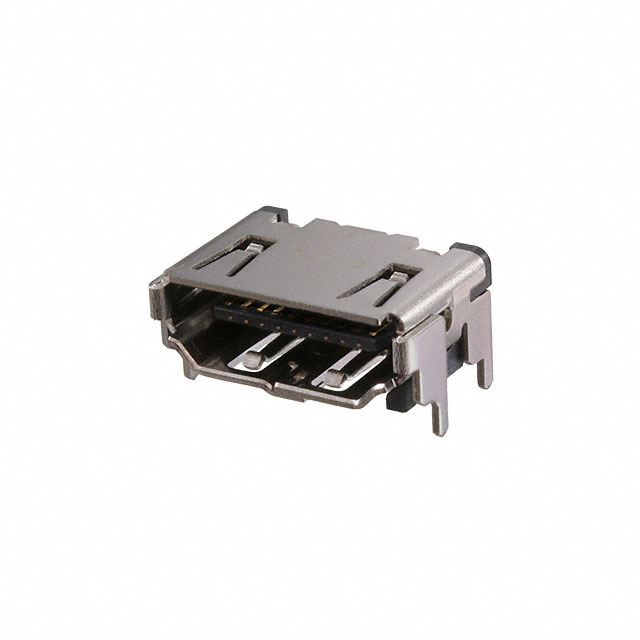

DC04S019JA2R600
ActiveJAE Electronics
RECEPT, HDMI 2.1, 48GBPS BANDWID
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DC04S019JA2R600
ActiveJAE Electronics
RECEPT, HDMI 2.1, 48GBPS BANDWID
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC04S019JA2R600 |
|---|---|
| Connector Type | HDMI |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.5 A |
| Features | Board Guide |
| Gender | Receptacle |
| Insulation Color | Black |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts [custom] | 19 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | HDMI 2.1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.13 | |
| 10 | $ 2.84 | |||
| 25 | $ 2.69 | |||
| 50 | $ 2.63 | |||
| 100 | $ 2.50 | |||
| 250 | $ 2.19 | |||
| Digi-Reel® | 1 | $ 3.13 | ||
| 10 | $ 2.84 | |||
| 25 | $ 2.69 | |||
| 50 | $ 2.63 | |||
| 100 | $ 2.50 | |||
| 250 | $ 2.19 | |||
| Tape & Reel (TR) | 600 | $ 2.13 | ||
| 1200 | $ 1.82 | |||
| 1800 | $ 1.75 | |||
| 3000 | $ 1.69 | |||
| 6000 | $ 1.63 | |||
Description
General part information
DC04S019 Series
HDMI HDMI 2.1 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
