DLFP-0125-0501

Active

SCHURTER Inc.

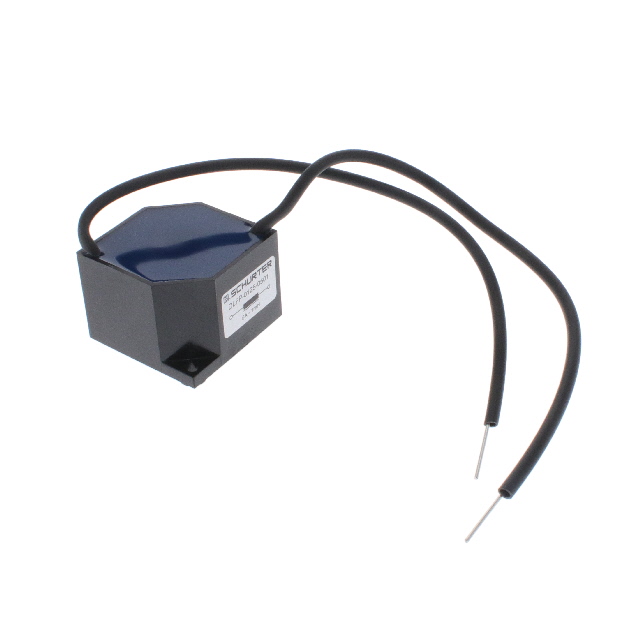

CMC 5A 2LN CHAS MNT

Search across all available documentation for this part.

Active

SCHURTER Inc.

CMC 5A 2LN CHAS MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DLFP-0125-0501

Current Rating (Max) [Max]	5 A
DC Resistance (DCR) (Max) [Max]	120 mOhm
Mounting Type	Chassis Mount
Number of Lines	2
Operating Temperature [custom]	100 °C, -25 °C
Package / Case	Nonstandard
Size / Dimension [x]	1.575 in
Size / Dimension [x]	40 mm
Size / Dimension [y]	1.575 in
Size / Dimension [y]	40 mm
Voltage Rating - AC	440 V

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [custom]	Number of Lines	Package / Case	DC Resistance (DCR) (Max) [Max]	Voltage Rating - AC	Current Rating (Max) [Max]	DC Resistance (DCR) (Max)
SCHURTER Inc. DLFP-0147-12D5	Through Hole	1.969 in	50 mm	50 mm	1.969 in	-25 °C 100 °C	2	Nonstandard	38 mOhm	440 V	12 A
SCHURTER Inc. DLFP-0147-25D2	Through Hole	1.969 in	50 mm	50 mm	1.969 in	-25 °C 100 °C	2	Nonstandard	10 mOhm	440 V	25 A
SCHURTER Inc. DLFP-0147-16D3	Through Hole	1.969 in	50 mm	50 mm	1.969 in	-25 °C 100 °C	2	Nonstandard		440 V	16 A	25 mOhm
SCHURTER Inc. DLFP-0125-0501	Chassis Mount	1.575 in	40 mm	40 mm	1.575 in	-25 °C 100 °C	2	Nonstandard	120 mOhm	440 V	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Chassis Mount 5A DCR 120mOhm
